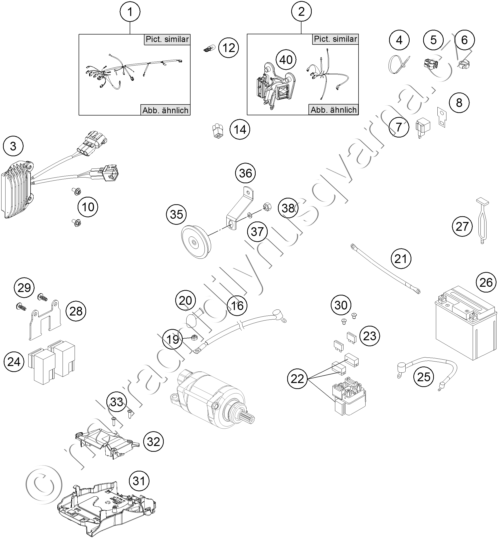

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77711175033 WIRING HARNESS EFI 2014 |
7 565 Kč | |
| 2 | 77711079000 WIRING HARNESS LIGHT CPL. EU |
1 288 Kč | |
| 3 | 78111034000 VOLTAGE REGULATOR |
4 403 Kč | |
| 4 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 4 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 4 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 5 | 83013026000 CABLE GUIDE |
39 Kč | |
| 6 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 7 | 44611207200 FLASHER UNIT 97 |
762 Kč | |
| 8 | 58211031100 BRACKET FOR FLASHER RELAISE |
71 Kč | |
| 10 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 12 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 14 | 81211096000 DUMMY PLUG AN 4-PIN |
135 Kč | |
| 16 | 81311059000 STARTER CABLE |
349 Kč | |
| 19 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 20 | 77240099000 PROTECTION CAP F. STARTER ENG. |
164 Kč | |
| 21 | 58411059100 STARTERCABLE 700 MM \'97 |
289 Kč | |
| 22 | 76211058000 STARTER RELAY 07 |
1 294 Kč | |
| 23 | 58011109120 FUSE 20 A |
63 Kč | |
| 24 | 61111057000 RELAY CM1A-R-12V-H80 07 |
257 Kč | |
| 25 | 81311059050 WIRING HARNESS BATTERY |
349 Kč | |
| 26 | 58511053000 BATTERY 12V 4AH YTX5L-BS |
1 456 Kč | |
| 27 | 50303018000 RUBBER L=145MM |
98 Kč | |
| 28 | 81311037000 BRACKET POWERRELAIS |
61 Kč | |
| 29 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 30 | 0902060083 AH OVAL SCREW ISO 7380 M 6X8 |
23 Kč | |
| 31 | 77711094000 ELECTRIC BOX |
156 Kč | |
| 32 | 77711094050 ECU SPLASH PROTECT. |
225 Kč | |
| 33 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 35 | 50311060200 DC HORN 12V 07 |
541 Kč | |
| 36 | 78011061000 HORN BRACKET EXC 08 |
69 Kč | |
| 37 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 38 | 0934050003 HEXAGON NUT DIN0934-M 5 |
20 Kč | |
| 40 | 77711083000 SUPPORT BRACKET |
430 Kč |
