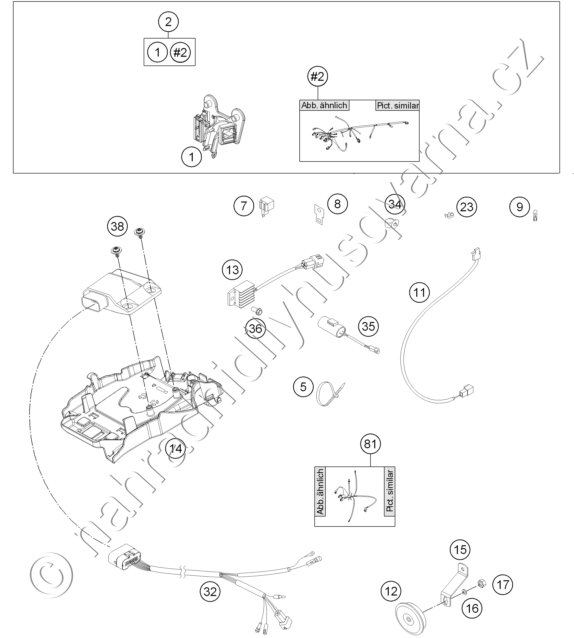

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77711083000 SUPPORT BRACKET |
430 Kč | |
| 2 | 50311175000 WIRING HARNESS 125 EXC CPL. 14 |
2 486 Kč | |
| 5 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 5 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 5 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 7 | 44611207200 FLASHER UNIT 97 |
762 Kč | |
| 8 | 58211031100 BRACKET FOR FLASHER RELAISE |
71 Kč | |
| 9 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 11 | 77711050000 BREAK LIGHT SWITCH FRONT 2014 |
753 Kč | |
| 12 | 50311060200 DC HORN 12V 07 |
541 Kč | |
| 13 | 80011034000 VOLTAGE REGULATOR 04 |
1 678 Kč | |
| 14 | 77711094000 ELECTRIC BOX |
156 Kč | |
| 15 | 78011061000 HORN BRACKET EXC 08 |
69 Kč | |
| 16 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 17 | 0934050003 HEXAGON NUT DIN0934-M 5 |
20 Kč | |
| 23 | 57013072000 WIRING HOLDER 12MM |
50 Kč | |
| 23 | 57013072100 WIRING HOLDER 16MM |
23 Kč | |
| 32 | 54839032200 WIRING HARNESS FOR CDI 2-ST.07 |
1 294 Kč | |
| 34 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 35 | 50311035000 CONDENSATOR 2200MF ADP-48 2000 |
2 005 Kč | |
| 36 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 38 | 0081645121 EJOT DELTA PT SCREW 45X12-Z |
23 Kč | |
| 81 | 77711081000 FLASHER WIR. HARNESS 14 |
818 Kč |
