Díly pro SHOCK ABSORBER DISASSEMBLED

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 50180944S1
MONOSHOCK UPPER PART CPL.
5 150 Kč
2 50180213S15
DCC COMPR.DAMP.CON. SX 12 LINK
3 726 Kč
3 50180218
O-RING 25X1,5 VITON
66 Kč
4 R12012
REP. KIT BEAR./SEAL UP. 07
1 352 Kč
5 46180010
BUSH KGW 10X24
191 Kč
6 52000087
STICKER WP MONOSHOCK
288 Kč
7 50180095
BLEED PLUG R 1/8
95 Kč
8 46810893
O-RING NBR 5,28X1,78
29 Kč
9 36120151S
PLUG SCREW M5X6 CPL.
161 Kč
10 46811208
RUBBER CAP \'\'DO NOT OPEN\'\'
57 Kč
11 50180937
TENSIONING RING D64 H10
231 Kč
12 0912050203
AH SCREW DIN0912-M 5X20
36 Kč
1350180938SA

Na dotaz
1
14 50180965
SPACER RING SPRING 61,3X78X3
150 Kč
15 91210102S
SPRING 260 51 N/MM
3 382 Kč
15 91210103S
SPRING 260 54 N/MM
3 382 Kč
15 91210104S
SPRING 260 57 N/MM
3 382 Kč
15 91210105S
SPRING 260 60 N/MM
3 382 Kč
16 50180793
SPACER RING ADJUSTING NUT
37 Kč
17 50180824
SPRING PLATE D80 CLOSED
233 Kč
18 50180273
CIRCLIP 58,2X2
47 Kč
19 50180141
PISTON ROD NUT M16X1
360 Kč
20 50180836
REBOUND DISC 16X34 T2 H0
134 Kč
21 50180786E
PISTON D50
959 Kč
22 50180801
REBOUND DISC D16X43 H8
214 Kč
23 50180603SA
ADAPTER D50 H28 CPL.
897 Kč
24 50180780
REBOUND SPRING
60 Kč
25 50180798
REBOUND RUBBER
49 Kč
26 50180800
SPRING RING
94 Kč
27 50180605S
SEAL D18X30X5 08
786 Kč
28 50180604
SHIM D29,75 X D19 X T0,4 08
44 Kč
29 46180119
DU-BUSH 18X20X12
95 Kč
30 50180103
O-RING 41X5
41 Kč
31 50180606
DUST SEAL 1828 08
219 Kč
32 50180126
CIRCLIP 53X1,75
31 Kč
33 50180626
RESERVOIR CAP D=50 H=10 09
892 Kč
34 50181077
BUMP RUBBER
567 Kč
35 46811205
ADAPTOR-BUSH M10x1,50, D=15
124 Kč
36 50180773SA1
MONOSHOCK BOTTOM PART CPL.
3 643 Kč
37 50180751S1
SHOCK ABSORBER FLUID 5 LT
2 803 Kč
99 R12022
REPAIR KIT
2 413 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL ENGINE GUARD ENGINE GUARD EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS INSTRUMENTS / LOCK SYSTEM INSTRUMENTS / LOCK SYSTEM LIGHTING SYSTEM LIGHTING SYSTEM MASK, FENDERS MASK, FENDERS PRO LEVER LINKING PRO LEVER LINKING REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SIDE / CENTER STAND SIDE / CENTER STAND SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS WP SHIMS FOR SETTING WP SHIMS FOR SETTING

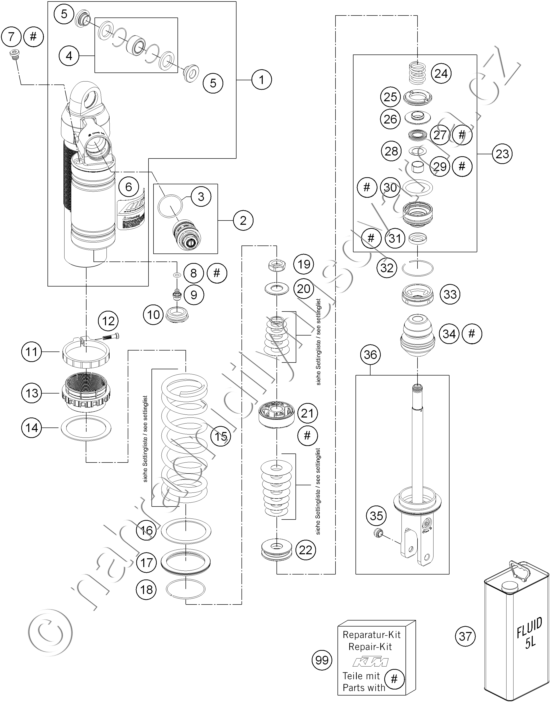

SHOCK ABSORBER DISASSEMBLED
