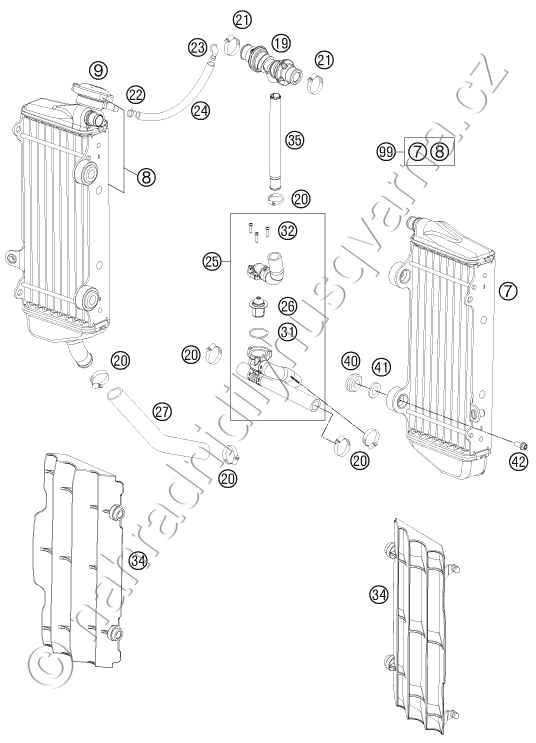

Díly pro COOLING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 54835007400 RADIATOR L/S \'\'15562U\'\' 14 |
5 477 Kč | |
| 8 | 54835008600 RADIATOR R/S \'\'15620U\'\' 14 |
5 477 Kč | |
| 9 | 77335016000 RADIATOR CAP SMALL 1,8 BAR |
283 Kč | |
| 19 | 77235071044 Y-CONNECTOR CPL. |
837 Kč | |
| 20 | 10001020300 HOSE CLAMP 18-29 |
52 Kč | |
| 21 | 42013037400 HOSE CLAMP NORMA 14/24 |
56 Kč | |
| 22 | 59007017000 CLAMP YDNAC 10096F (9,6MM) |
20 Kč | |
| 23 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 24 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 25 | 54835626033 RADIATOR HOSE W. THERMO. \'14 |
2 285 Kč | |
| 26 | 59435017000 THERMOSTAT 70 DEGREE 04 |
655 Kč | |
| 27 | 54835027000 RADIATOR HOSE 18X25X130 MM 03 |
82 Kč | |
| 31 | 0770320020 O-RING 32,00X2,00 |
44 Kč | |
| 32 | 0016040183 SCREW FOR PLASTIC D=4X18 |
17 Kč | |
| 34 | 7733503400030 RADIATOR PROTECTION BLACK 07 |
209 Kč | |
| 35 | 77235073000 HOSE CONNECTOR L=172,5 |
379 Kč | |
| 40 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 41 | 77335001000 WASHER FOR RADIATOR 08 |
34 Kč | |
| 42 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 99 | 00050000134 RADIATOR KIT 10-14 |
10 425 Kč |
