Díly pro TRANSMISSION I - MAIN SHAFT

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 77233001100
MAIN SHAFT CPL.
3 042 Kč
2 54833002100
SOLID GEAR 2ND G. 16-T \'\'2S16\'\'
791 Kč
3 54833003000
SLIDING GEAR 3RD G.18-T \'\'3S18\'\'
2 160 Kč
4 54833004100
IDLER GEAR 4 TH.
1 682 Kč
5 54833005100
IDLER GEAR 5.G, Z=25
1 604 Kč
6 78033001110
BUSHING
211 Kč
7 75030085000
RETAINING PLATE F. CS BEARING
86 Kč
8 0019050106S
HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9
18 Kč
10 0625062054
BALL BEARING 6205 C3 NTN
292 Kč
11 0405222613
NEEDLE BEAR. K 22X26X13 TN
132 Kč
12 0405242812
NEDDLE BEAR. K24X28X11,9 DIV.
103 Kč
16 77033022000
AXIAL-CIRCLIP 25X1,65
82 Kč
19 77233015000
DISK 20,2X32X1,3
60 Kč
20 0625160040
GROOVED BALL BEAR. TM 16004 C3
310 Kč
22 77233088000
SPACER SHIM 21X42X0.2
238 Kč
30 59033030000
STOP DISC 25,2X32X1,5
58 Kč
43 50333043000
STOP DISC 25,2X32X1
73 Kč

Další schémata

CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE

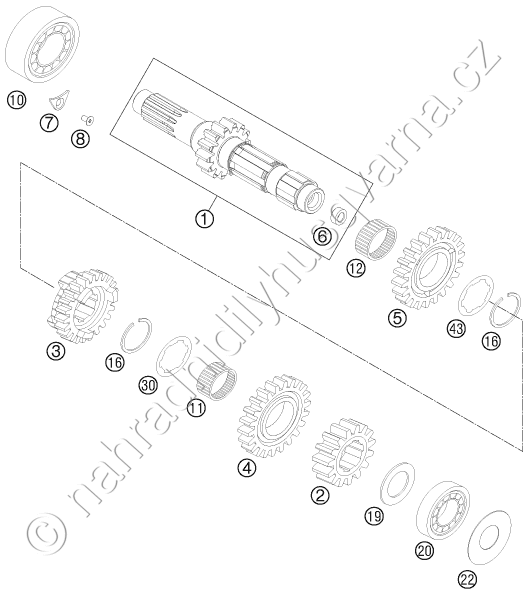

TRANSMISSION I - MAIN SHAFT

Zvětšit schéma TRANSMISSION I - MAIN SHAFT
TRANSMISSION I - MAIN SHAFT
