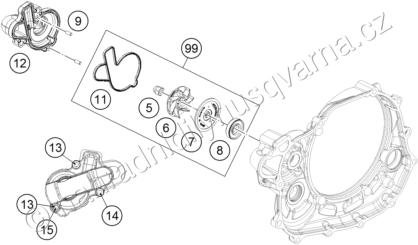

Díly pro WATER PUMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 5 | 61230045000 CAP NUT M6 STAINLESS STEEL |
20 Kč | |
| 6 | 81235055020 WATER PUMP ROTOR |
126 Kč | |
| 7 | 81235055110 DISC WATER PUMP |
113 Kč | |
| 8 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE |
212 Kč | |
| 9 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 11 | 78135053000 WATER-PUMP GASKET |
106 Kč | |
| 12 | 78135052000 WATER PUMP COVER CPL. |
1 078 Kč | |
| 13 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 14 | 0025060656 HH COLLAR SCREW M6X65 TX30 |
29 Kč | |
| 15 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 99 | 81235055015 WATER PUMP REP. KIT 12-14 |
470 Kč |
