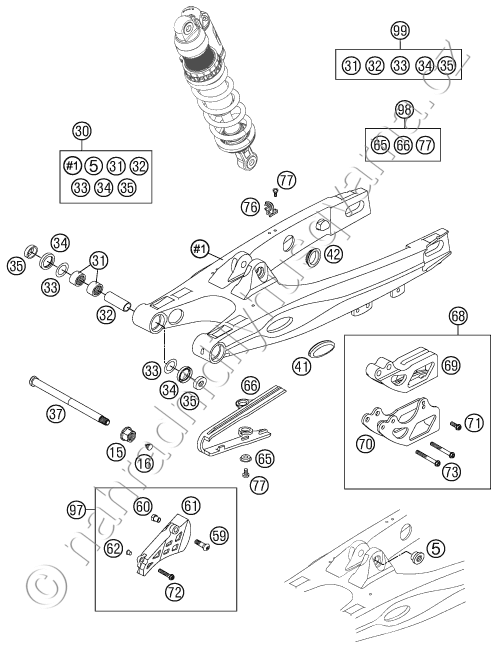

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 5 | 50180105 THREADED BUSH M12 PDS |
169 Kč | |
| 15 | 77204087000 HEX NUT M14X1.5 WS17 |
55 Kč | |
| 16 | 54403135000 PLASTIC CAP SFL10 |
29 Kč | |
| 30 | 47004030144 SWINGARM 85SX CPL. 2004 |
17 561 Kč | |
| 31 | 59004031000 NEEDLE BUSH HK2012V |
161 Kč | |
| 32 | 50203081700 BUSHING SLEEVE 15X20X38,75 |
180 Kč | |
| 33 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 34 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 35 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 |
103 Kč | |
| 37 | 47104037000 SWING ARM BOLT 85 SX |
1 150 Kč | |
| 41 | 58404041000 CLOSING COVER SWINGARM SM 03 |
114 Kč | |
| 42 | 58404041100 CLOSING COVER ROUND 03 |
25 Kč | |
| 59 | 0019080206 COUNTER-SUNK SCREW ISA45 M8X20 |
33 Kč | |
| 60 | 47030060051 THREADED BUSH FOR CHAIN GUARD |
57 Kč | |
| 61 | 47007061000 CHAIN GUARD 85 SX 2003 |
247 Kč | |
| 62 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 |
77 Kč | |
| 65 | 72210079000 BUCKET |
69 Kč | |
| 66 | 58404066000 CHAIN SLIDING GUARD SM 03 |
220 Kč | |
| 68 | 54607069000 CHAIN GUIDE KIT REAR CPL. |
722 Kč | |
| 69 | 54607066100 CHAIN GUIDE REAR \'94 |
326 Kč | |
| 70 | 54607070144 RETAINING PLATE CPL. |
525 Kč | |
| 71 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 72 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 73 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 76 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE\'96 |
29 Kč | |
| 77 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 97 | 47007061010 SPROCKET COVER KIT |
340 Kč | |
| 98 | 58404066010 CHAIN GUARD KIT 105/85 SX |
299 Kč | |
| 99 | 47004230010 SWINGARM REP. KIT 105/85 SX |
1 113 Kč |
