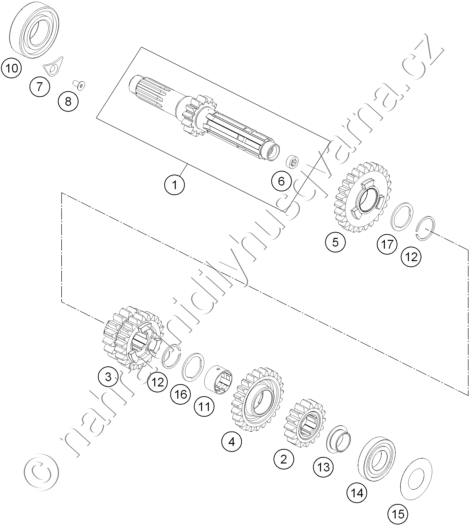

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77733001000 MAIN SHAFT CPL. |
3 109 Kč | |
| 2 | 77733102100 SOLID GEAR 2TH, Z=16 |
807 Kč | |
| 3 | 77733103100 SLIDING GEEAR 3./4.G Z=16/23 |
3 204 Kč | |
| 4 | 77733105000 IDLER GEAR 5TH G. T=23 |
2 160 Kč | |
| 5 | 72033006144 SLIDING GEAR 6 TH. |
1 682 Kč | |
| 6 | 78033001110 BUSHING |
211 Kč | |
| 7 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 8 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 10 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 11 | 77733024000 IDLER GEAR BUSHING |
578 Kč | |
| 12 | 50133090000 LOCK RING 22X1,2 |
28 Kč | |
| 13 | 77733027000 BUSHING |
578 Kč | |
| 14 | 0625160040 GROOVED BALL BEAR. TM 16004 C3 |
310 Kč | |
| 15 | 77233088000 SPACER SHIM 21X42X0.2 |
238 Kč | |
| 16 | 77733021000 STOP DISC |
129 Kč | |
| 17 | 77733022000 STOP DISC |
129 Kč |
