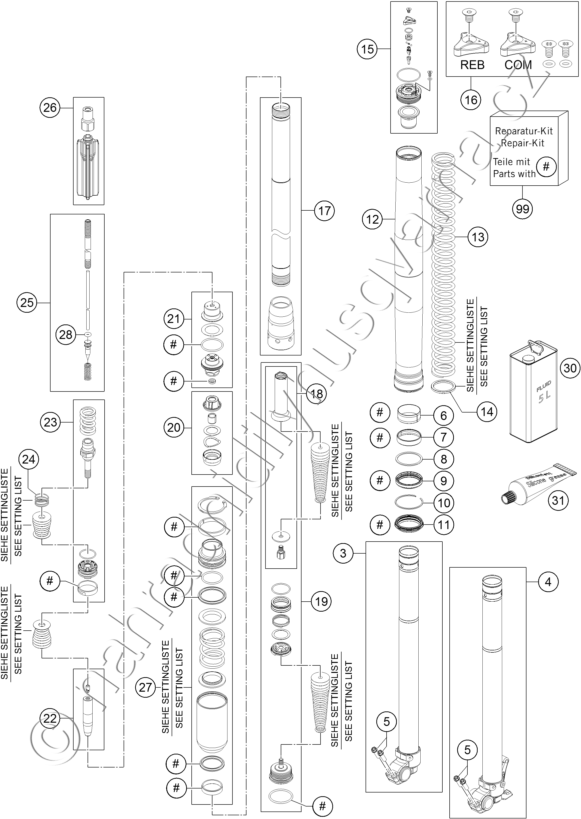

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 3 | 48601029S1 AXLE CLAMP R/S WITH INNER TUBE |
6 976 Kč | |
| 4 | 48601028S1 AXLE CLAMP L/S WITH INNER TUBE |
6 976 Kč | |
| 5 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 6 | 48601008 GUIDING BUSH 47X49X20 R11 |
219 Kč | |
| 7 | 48601009 GUIDING BUSH 48X52X12 R11 |
219 Kč | |
| 8 | 48600013 SUPPORT RING 50 X 57,6 X 1,5 |
118 Kč | |
| 9 | 48601414 OELSEALRING 48X57,9X11,4 |
377 Kč | |
| 10 | 48600070 LOCK WASHER SB58 |
44 Kč | |
| 11 | 48601178 DUST SEAL DL48X58,4X5,7 RED |
340 Kč | |
| 12 | 48600736 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 13 | 91410081S SPRING D43.8 L465 3.6N/MM SET |
3 382 Kč | |
| 13 | 91410082S SPRING D43,8 L465 3,8N/MM SET |
3 382 Kč | |
| 13 | 91410083S SPRING D43,8 L465 4,0N/MM SET |
3 382 Kč | |
| 13 | 91410084S SPRING D43,8 L465 4,2N/MM SET |
3 382 Kč | |
| 13 | 91410085S SPRING D43,8 L465 4,4N/MM SET |
3 382 Kč | |
| 13 | 91410086S SPRING D43,8 L465 4,6N/MM SET |
3 382 Kč | |
| 13 | 91410092S SPRING D43,8 L465 4,8N/MM SET |
3 382 Kč | |
| 14 | 48600456 SPACER 43X35X2,5 |
340 Kč | |
| 14 | 48600458 SPACER 43X35X1,5 |
340 Kč | |
| 15 | 48601050E SCREW CAP M51X1,5 REB. KPL. |
1 315 Kč | |
| 15 | 48601116E SCREW CAP M51X1,5 CPL. |
1 315 Kč | |
| 16 | R14033 SCREW CAP SMALL PART KIT |
395 Kč | |
| 17 | 48601031S CARTRIDGE KIT |
2 393 Kč | |
| 18 | R14034 HYDROSTOP KIT |
395 Kč | |
| 19 | 48601279S BASE VALVE KIT |
648 Kč | |
| 20 | 48601025S1 CHECK VALVE D21 CPL. |
751 Kč | |
| 21 | R14035 SCREW SLEEVE KIT |
753 Kč | |
| 22 | 48601123S NEEDLE KIT |
445 Kč | |
| 23 | R14036 TAP KIT |
753 Kč | |
| 24 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 25 | 48601054S PISTON ROD CPL. |
1 195 Kč | |
| 26 | 48601035S SPRING GUIDE CPL. |
158 Kč | |
| 27 | 48601021S PRESSURE TANK L74,5 D36 S CPL. |
927 Kč | |
| 27 | 48601021S2 PRESSURE TANK L74,5 D36 S2 CPL |
927 Kč | |
| 27 | 48601021S3 PRESSURE TANK L74,5 D36 S3 CPL |
927 Kč | |
| 27 | 48601021S4 PRESSURE TANK L74,5 D36 S4 CPL |
927 Kč | |
| 28 | 46811265 O-RING VITON 2,2X1,6 |
36 Kč | |
| 30 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 31 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | R24001 REPAIR - KIT |
2 337 Kč |
