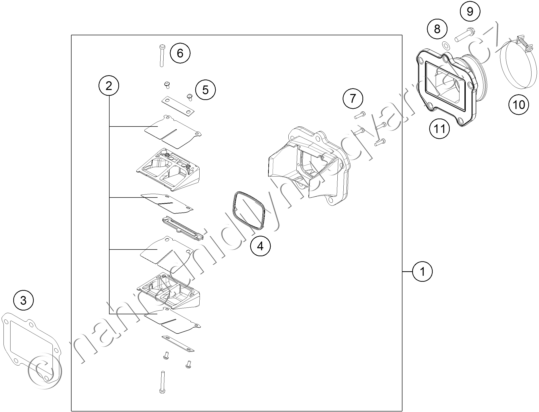

Díly pro REED VALVE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50330151044 REED VALVE ASSY CPL. |
4 762 Kč | |
| 2 | 54830052344 REED VALVE SET |
2 328 Kč | |
| 3 | 50330098050 GASKET REED V.PLATE V-FORCE 04 |
171 Kč | |
| 4 | 54830153050 GASKET SUPPORTING PLATE |
464 Kč | |
| 5 | 0081030063 EJOT DELTA PT SCREW 30X6 |
17 Kč | |
| 6 | 0081035253 EJOT DELTA PT SCREW 35X25 |
17 Kč | |
| 7 | 0081030124 EJOT DELTA PT SCREW 30X12 |
17 Kč | |
| 8 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 9 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 10 | 54330061000 CLAMP 52/12 GEMI |
122 Kč | |
| 11 | 50330050300 INTAKE FLANGE 125 09 |
708 Kč |
