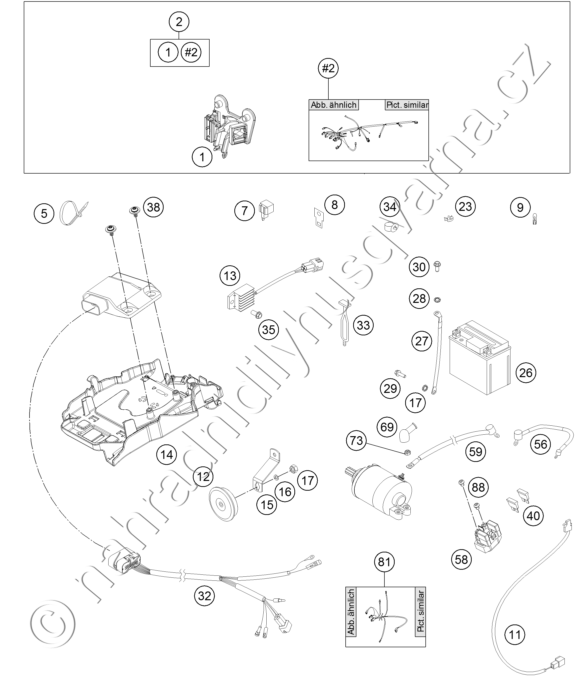

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77711083000 SUPPORT BRACKET |
430 Kč | |
| 2 | 54811075700 WIRING HARNESS 2T. EXC 14 |
2 200 Kč | |
| 5 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 5 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 5 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 7 | 76511030000 FLASHER UNIT |
762 Kč | |
| 8 | 58211031100 BRACKET FOR FLASHER RELAISE |
71 Kč | |
| 9 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 11 | 77711050000 BREAK LIGHT SWITCH FRONT 2014 |
753 Kč | |
| 12 | 50311060200 DC HORN 12V 07 |
541 Kč | |
| 13 | 80011034000 VOLTAGE REGULATOR 04 |
1 678 Kč | |
| 14 | 77711094000 ELECTRIC BOX |
156 Kč | |
| 15 | 78011061000 HORN BRACKET EXC 08 |
69 Kč | |
| 16 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 17 | 0934050003 HEXAGON NUT DIN0934-M 5 |
20 Kč | |
| 23 | 57013072100 WIRING HOLDER 16MM |
23 Kč | |
| 26 | 58511053000 BATTERY 12V 4AH YTX5L-BS |
1 456 Kč | |
| 27 | 58411059100 STARTERCABLE 700 MM \'97 |
289 Kč | |
| 28 | 58411098100 CONTACT WASHER M6 VSV-K6 |
23 Kč | |
| 29 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 30 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 32 | 54839032200 WIRING HARNESS FOR CDI 2-ST.07 |
1 294 Kč | |
| 33 | 50303018000 RUBBER L=145MM |
98 Kč | |
| 34 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 35 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 38 | 0081645121 EJOT DELTA PT SCREW 45X12-Z |
23 Kč | |
| 40 | 58011109110 FUSE 10 A 2000 |
63 Kč | |
| 56 | 81311059050 WIRING HARNESS BATTERY |
349 Kč | |
| 58 | 76211058000 STARTER RELAY 07 |
1 294 Kč | |
| 59 | 81311059100 STARTER CABLE |
349 Kč | |
| 69 | 58440099000 PROTECTION CAP F. STARTER ENG. |
77 Kč | |
| 73 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 81 | 77711081000 FLASHER WIR. HARNESS 14 |
818 Kč | |
| 88 | 0902060083 AH OVAL SCREW ISO 7380 M 6X8 |
23 Kč |
