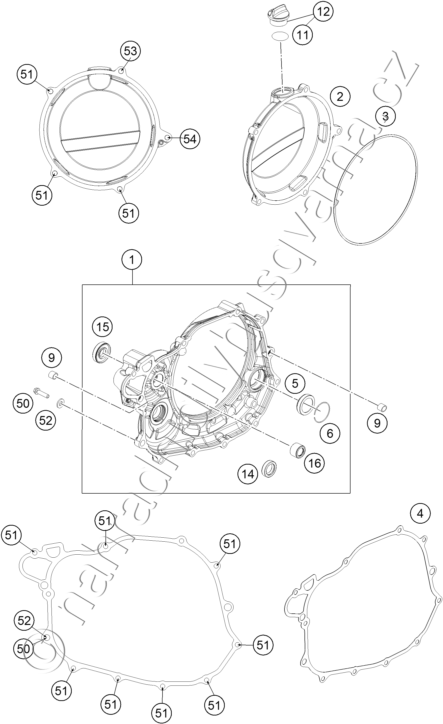

Díly pro CLUTCH COVER
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 78130101044 CLUTCH COVER CPL. |
2 292 Kč | |
2 | 78130626000KA OUTER CLUTCH COVER \'\'HQV\'\' |
1 867 Kč | |
3 | 78130027000 GASKET - CLUTCH OUTER COVER |
134 Kč | |
4 | 78130125000 CLUTCH COVER GASKET |
430 Kč | |
5 | 78030095100 OIL LEVEL GLASS VITON |
217 Kč | |
6 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
9 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
11 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
12 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
14 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
15 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE |
212 Kč | |
16 | 0618121912 NEEDLE BUSH NK1212 |
377 Kč | |
50 | 78030080000 LOCATING SCREW |
60 Kč | |
51 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
52 | 58030081000 CU-SEAL RING 8 X 14 X 3 |
42 Kč | |
53 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
54 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč |
