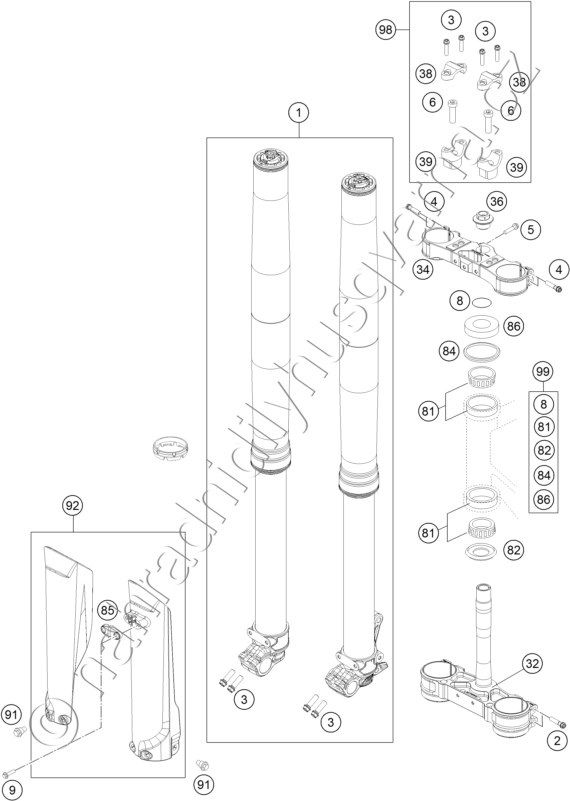

Díly pro FRONT FORK, TRIPLE CLAMP
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 24187O5301 FORK 250 SX US / TC250 15 |
47 338 Kč | |
2 | 0025080506 HH COLLAR SCREW M8X50 TX40 |
33 Kč | |
3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
4 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč | |
5 | 0025080256S HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
6 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
8 | 0770025035 O-RING 25X3,55 NBR70 05 |
17 Kč | |
9 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
32 | 7770103202230 TRIPLE CL. BOTT. CPL. X=22 BL. |
6 872 Kč | |
34 | 7770103402230 TRIPLE CLAMP TOP X=22 BLACK |
5 147 Kč | |
36 | 70009082000 AXLESCREW M20X1.5; SW17 |
201 Kč | |
38 | 77201038000 HANDLEBAR CLAMP 28MM |
387 Kč | |
39 | 59401039032 HANDLEB.SUPP. D=28MM H=32MM 05 |
619 Kč | |
39 | 59401039037 HANDLEB.SUPP. D=28MM H=37MM 05 |
619 Kč | |
39 | 59401039042 HANDLEB.SUPP. D=28MM H=42MM 05 |
619 Kč | |
81 | 54201081100 TAPERED ROLLER BEARING CPL. 06 |
756 Kč | |
82 | 77701084000 O-RING SUPPORT W. SEALING LIP |
332 Kč | |
84 | 54601184000 STEARING HEAD GASKET TOP |
114 Kč | |
85 | 77701085000DA CLAMP BRAKE HOSE |
61 Kč | |
86 | 78101086000 STEERING HEAD COVER |
94 Kč | |
91 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
92 | 77701094000DA FORK PROTECTION L/S+R/S |
863 Kč | |
98 | 00050000921 HANDLEBAR SUPPORT KIT D28/H37 |
1 942 Kč | |
99 | 00050000930 STEARING HEAD REP. KIT 06-15 |
1 900 Kč |
