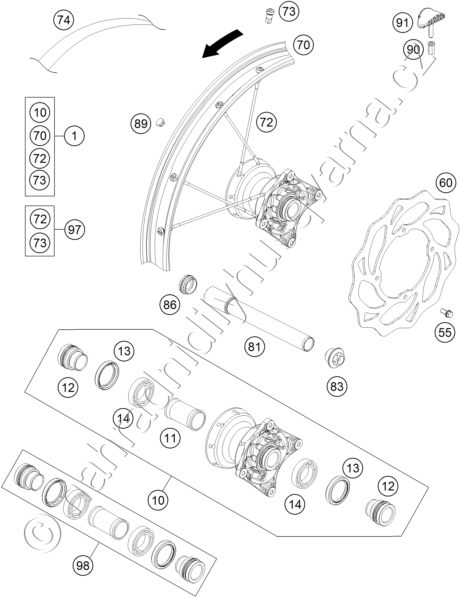

Díly pro FRONT WHEEL
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 2350900104430 FRONT WHEEL CPL. 2014 |
16 900 Kč | |
10 | 70009010044 FRONT WHEEL HUB CPL. 12 |
7 198 Kč | |
11 | 70009011000 BEAR.SPACER TUBE FRONT D22MM |
312 Kč | |
12 | 70009012000 SPACER BUSHING D=22MM |
462 Kč | |
13 | 0760324271 SHAFT SEAL RING 32X42X7 BSL |
65 Kč | |
14 | 0625069050 BALL BEARING 6905 J1LLUC3 |
645 Kč | |
55 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
60 | 47009060300 BRAKE DISC FRONT D=219MM 09 |
2 394 Kč | |
70 | 2350907000030 RIM FRONT AL4 17X1,40-32 |
4 312 Kč | |
72 | 47109071183 SPOKE M4,5X183-17\'\' |
60 Kč | |
73 | 77109072000 SPOKE NIPPLE M4,5 AL 11 |
52 Kč | |
74 | 47009073000 RIM BAND 85 SX 17\'\' 2003 |
95 Kč | |
81 | 70009081033 FRONT AXLE CPL. \'12 |
1 375 Kč | |
83 | 70009082000 AXLESCREW M20X1.5; SW17 |
201 Kč | |
86 | 70009081050 PLUG BUSHING SW17 \'12 |
164 Kč | |
89 | 55003135000 PLUG FOR RIM |
29 Kč | |
90 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
91 | 45110090000 RIM LOCK CPL. 2004 |
627 Kč | |
97 | 00050000970 SPOKE KIT FRONT 85 TC 17\'\' |
2 532 Kč | |
98 | 70009015000 FRONT WHEEL REP. KIT |
1 865 Kč |
