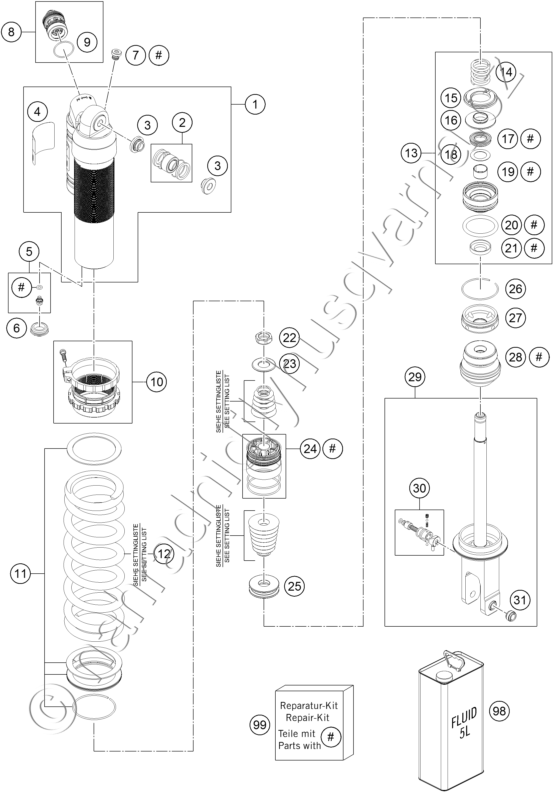

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50180944S1 MONOSHOCK UPPER PART CPL. |
5 150 Kč | |
| 2 | R12012 REP. KIT BEAR./SEAL UP. 07 |
1 352 Kč | |
| 3 | 46180010 BUSH KGW 10X24 |
191 Kč | |
| 4 | 52000087 STICKER WP MONOSHOCK |
288 Kč | |
| 5 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 6 | 46811208 RUBBER CAP \'\'DO NOT OPEN\'\' |
57 Kč | |
| 7 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 8 | 50180213S10 DCC-COMPR.DAMP.CONTROL CPL. 07 |
3 730 Kč | |
| 9 | 50180218 O-RING 25X1,5 VITON |
66 Kč | |
| 10 | 50180938SA |
Na dotaz | 1 |
| 11 | 50180824S1 SPRING PLATE KIT |
1 120 Kč | |
| 12 | 91210101S SPRING 260 48 N/MM |
3 382 Kč | |
| 12 | 91210102S SPRING 260 51 N/MM |
3 382 Kč | |
| 12 | 91210103S SPRING 260 54 N/MM |
3 382 Kč | |
| 12 | 91210104S SPRING 260 57 N/MM |
3 382 Kč | |
| 12 | 91210105S SPRING 260 60 N/MM |
3 382 Kč | |
| 13 | 50180603SA ADAPTER D50 H28 CPL. |
897 Kč | |
| 14 | 50180780 REBOUND SPRING |
60 Kč | |
| 15 | 50180798 REBOUND RUBBER |
49 Kč | |
| 16 | 50180800 SPRING RING |
94 Kč | |
| 17 | 50180605S SEAL D18X30X5 08 |
786 Kč | |
| 18 | 50180604 SHIM D29,75 X D19 X T0,4 08 |
44 Kč | |
| 19 | 46180119 DU-BUSH 18X20X12 |
95 Kč | |
| 20 | 50180103 O-RING 41X5 |
41 Kč | |
| 21 | 50180606 DUST SEAL 1828 08 |
219 Kč | |
| 22 | 50180141 PISTON ROD NUT M16X1 |
360 Kč | |
| 23 | 50180836 REBOUND DISC 16X34 T2 H0 |
134 Kč | |
| 24 | 50180786E PISTON D50 |
959 Kč | |
| 25 | 50180801 REBOUND DISC D16X43 H8 |
214 Kč | |
| 26 | 50180126 CIRCLIP 53X1,75 |
31 Kč | |
| 27 | 50180626 RESERVOIR CAP D=50 H=10 09 |
892 Kč | |
| 28 | 50181077 BUMP RUBBER |
567 Kč | |
| 29 | 50180773SA1 MONOSHOCK BOTTOM PART CPL. |
3 643 Kč | |
| 30 | 46180522S1 TAP ADJ. REBOUND |
464 Kč | |
| 31 | 46811205 ADAPTOR-BUSH M10x1,50, D=15 |
124 Kč | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 99 | R12022 REPAIR KIT |
2 413 Kč |
