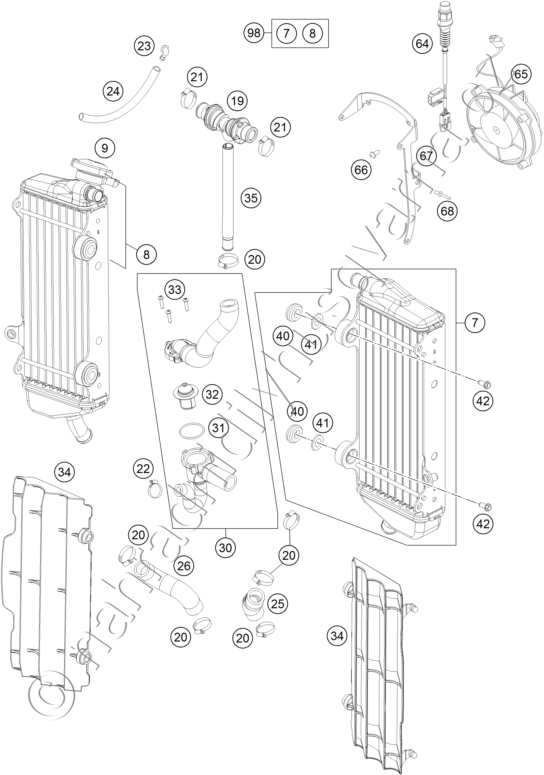

Díly pro COOLING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 77035007500 RADIATOR L/S \'\'15623U\'\' |
6 268 Kč | |
| 8 | 78035008400 RADIATOR R/S \'\'15556U\'\' |
6 268 Kč | |
| 9 | 77335016000 RADIATOR CAP SMALL 1,8 BAR |
283 Kč | |
| 19 | 77235071044 Y-CONNECTOR CPL. |
837 Kč | |
| 20 | 10001020300 HOSE CLAMP 18-29 |
52 Kč | |
| 21 | 42013037400 HOSE CLAMP NORMA 14/24 |
56 Kč | |
| 22 | 58335099000 HOSE CLAMP GEMI 10-16 |
57 Kč | |
| 23 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 24 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 25 | 78135025000 RADIATOR HOSE L/S 2012 |
158 Kč | |
| 26 | 78135027000 RADIATOR HOSE R/S 2012 |
158 Kč | |
| 30 | 78135126033 RADIATOR HOSE CPL. W. THERM |
2 165 Kč | |
| 31 | 0770320020 O-RING 32,00X2,00 |
44 Kč | |
| 32 | 59435017000 THERMOSTAT 70 DEGREE 04 |
655 Kč | |
| 33 | 0016040183 SCREW FOR PLASTIC D=4X18 |
17 Kč | |
| 34 | 7733503400004 RADIATOR PROTECTION orange |
209 Kč | |
| 34 | 7733503400030 RADIATOR PROTECTION BLACK 07 |
209 Kč | |
| 35 | 50435073000 COOLING WATER PIPE |
379 Kč | |
| 40 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 41 | 77335001000 WASHER FOR RADIATOR 08 |
34 Kč | |
| 42 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 64 | 77735045000 THERMO SWITCH 95°C M14X1,5 |
1 371 Kč | |
| 65 | 58435041000 FAN CPL. 12V LC4 2000 |
2 243 Kč | |
| 66 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 67 | 81235943000 FAN SUPPORT |
1 027 Kč | |
| 68 | 0011400800 RIVET 4,0X 8 ALU |
18 Kč | |
| 98 | 00050000131 RADIATOR KIT 08-14 |
10 425 Kč |
