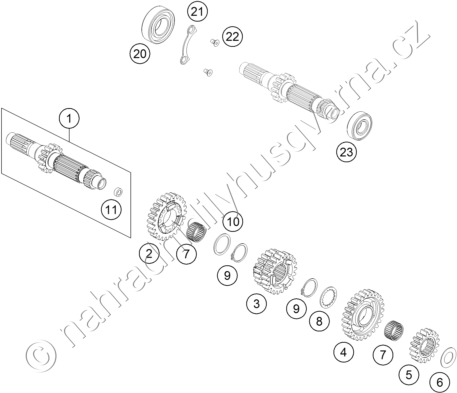

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78133001000 MAIN SHAFT ZB |
2 476 Kč | |
| 2 | 78033005100 IDLER GEAR 5. GEAR |
2 160 Kč | |
| 3 | 78033003000 SLIDING GEAR 3/4 G. 08 |
2 580 Kč | |
| 4 | 78033006100 IDLER GEAR 6. GEAR |
2 160 Kč | |
| 5 | 78033002000 SOLID GEAR 2.G. 08 |
895 Kč | |
| 6 | 56033030000 STOP DISC 17,2X30X1 |
158 Kč | |
| 7 | 0405222613 NEEDLE BEAR. K 22X26X13 TN |
132 Kč | |
| 8 | 78033033000 STOP DISK 23 X 32 X 1,5 |
73 Kč | |
| 9 | 0471250120 CIRCLIP DIN0471-25X1,2 |
18 Kč | |
| 10 | 78033031000 STOP DISK 26 X 32 X 1,5 |
73 Kč | |
| 11 | 78033001110 BUSHING |
211 Kč | |
| 20 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 21 | 78033032000 TAB WASHER BEARING MAIN SHAFT |
81 Kč | |
| 22 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 23 | 0625062036 BALL BEARING 6203 RSH C3 |
207 Kč |
