Díly pro ELECTRIC STARTER

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 78140001000
E-STARTER CPL. 0,5KW
5 758 Kč
2 0025060256
HH COLLAR SCREW M6X25 TX30
29 Kč
3 0770250030
O-RING 25,00X3,00 NBR 70
17 Kč
4 0025060406
HH COLLAR SCREW M6X40 TX30
29 Kč
5 78040016004
STOP DISC 6X23X2
52 Kč
6 78040029000
BEARING BOLT
113 Kč
8 0912060208
AH SCREW DIN0912-M 6X20 SS
23 Kč
14 0988172405
SHIM WASHER DIN0988-17X24X0,5
15 Kč
15 78040016100
TORQUE LIMITER CPL.
2 989 Kč
16 0471170010
CIRCLIP DIN0471-17X1
17 Kč
19 78940022000
IDLER GEAR 30-T CPL.
857 Kč
20 78040028000
BUSHING PIN
124 Kč
21 78940020033
FREEWHEEL GEAR 66 C CPL.
1 743 Kč
23 75040026000
FREE WHEEL
1 944 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

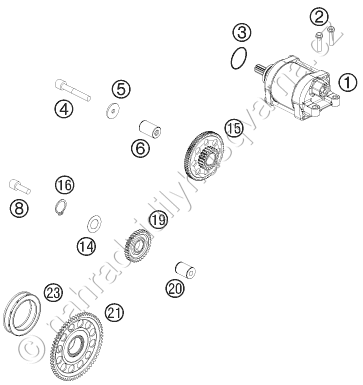

ELECTRIC STARTER

Zvětšit schéma ELECTRIC STARTER
ELECTRIC STARTER
