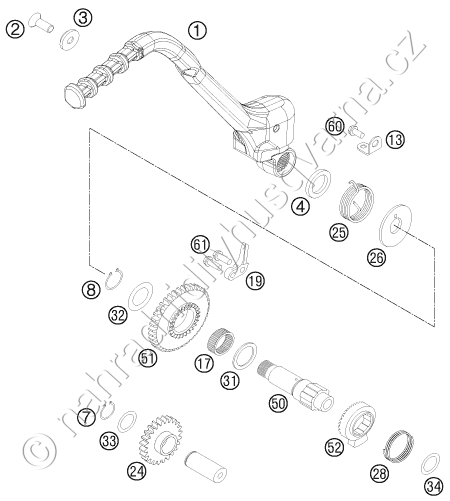

Díly pro KICK STARTER
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 77133070144 KICKSTARTER CPL. |
2 450 Kč | |
2 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
3 | 54633037000 WASHER 8MM GALVANIZED |
103 Kč | |
4 | 0760193070 SHAFT SEAL RING 19X30X7 B |
77 Kč | |
7 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
8 | 0471190120 CIRCLIP DIN0471-19X1,2 |
5 Kč | |
13 | 54633074000 SPRING HANGER |
105 Kč | |
17 | 0405222610 NEEDLE BEARING K 22X26X10 A |
175 Kč | |
19 | 59033069000 BUMP PART |
379 Kč | |
24 | 54833024100 INTERMEDIATE GEAR |
1 475 Kč | |
25 | 54633025000 KICKSTARTER SPRING |
122 Kč | |
26 | 54633026000 DRIVING HUB |
71 Kč | |
28 | 58033028000 RATCHET GEAR SPRING 1,2 MM |
53 Kč | |
31 | 58033031000 STOP DISK 22,2 X 30 X 1,5 |
36 Kč | |
32 | 59033080000 SHIM 20X32X1 |
41 Kč | |
33 | 54633090000 STOP DISK 17,2X25X1 |
49 Kč | |
34 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 |
15 Kč | |
50 | 59033050100 KICKSTARTER SHAFT |
1 100 Kč | |
51 | 54833051134 KICKSTARTER GEAR 34-T |
1 240 Kč | |
52 | 59033052100 RATCHET GEAR KICKSTARTER |
733 Kč | |
60 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
61 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč |
