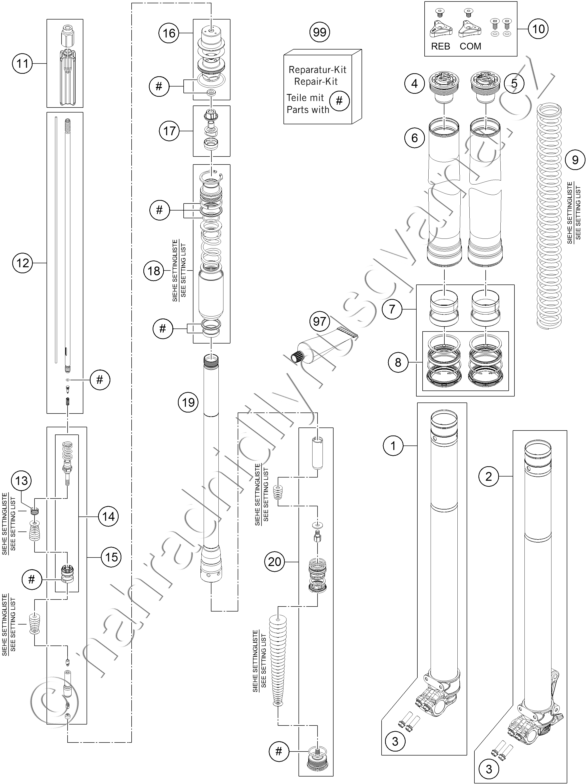

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 48601327S1 AXLE CLAMP R/S WITH INNER TUBE |
6 976 Kč | |
| 2 | 48601326S1 AXLE CLAMP L/S WITH INNER TUBE |
6 976 Kč | |
| 3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 4 | 48601050E SCREW CAP M51X1,5 REB. KPL. |
1 315 Kč | |
| 5 | 48601116E SCREW CAP M51X1,5 CPL. |
1 315 Kč | |
| 6 | 48600736 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 7 | R14063 FORK REP. KIT 48MM OFFROAD |
1 960 Kč | |
| 8 | R14040 GASKET KIT CPL. |
1 764 Kč | |
| 9 | 91410100S SPRING 4,0N/MM SET D=4,9MM |
3 382 Kč | |
| 9 | 91410101S SPRING 4,2N/MM SET D=4,9MM |
3 382 Kč | |
| 9 | 91410102S SPRING 4,4N/MM SET D=4,9MM |
3 382 Kč | |
| 9 | 91410103S FORK SPRING L= 470 4,6 N/MM SET |
3 382 Kč | |
| 9 | 91410104S SPRING 4,8N/MM SET D=4,9MM |
3 382 Kč | |
| 10 | R14033 SCREW CAP SMALL PART KIT |
395 Kč | |
| 11 | 48601035S SPRING GUIDE CPL. |
158 Kč | |
| 12 | 48601343S PISTON ROD CPL. |
2 410 Kč | |
| 13 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 14 | R14056 TAP KIT |
753 Kč | |
| 15 | 48601390S3 ADAPTER D20 COMPR. CPL. |
1 306 Kč | |
| 16 | R14035 SCREW SLEEVE KIT |
753 Kč | |
| 17 | 48601025S1 CHECK VALVE D21 CPL. |
751 Kč | |
| 18 | 48601315S4 PRESSURE TANK CPL. |
1 096 Kč | |
| 19 | 48601031S1 TUBE L403 + ADAPTER |
1 633 Kč | |
| 20 | 48601522S SCREW CAP CPL. |
979 Kč | |
| 97 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | R24002 O-RING SET 4CS |
815 Kč |
