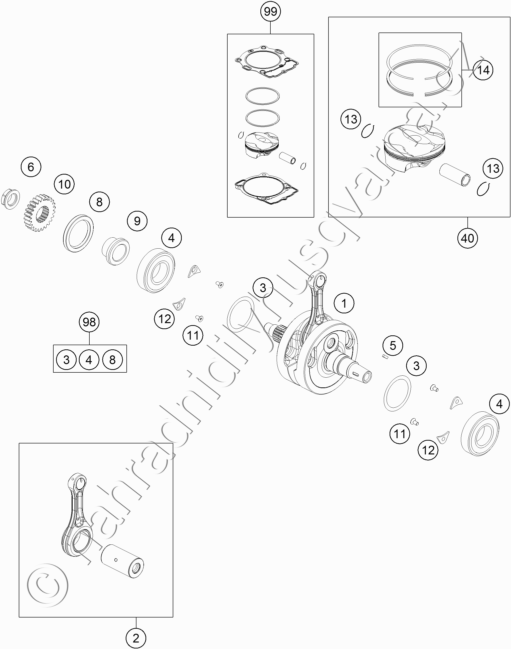

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79030118100 CRANKSHAFT CPL. |
20 054 Kč | |
| 2 | 79030115144 CONROD REPAIR KIT |
8 317 Kč | |
| 3 | 0988324510 THRUST WASHER 988ST 32X0,1 |
15 Kč | |
| 3 | 0988324515 THRUST WASHER 988ST 32X0,15 |
15 Kč | |
| 3 | 0988324530 THRUST WASHER 988ST 32X0,30 |
15 Kč | |
| 4 | 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 |
1 006 Kč | |
| 5 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 6 | 77230029000 NUT PRIMARY WHEEL |
738 Kč | |
| 8 | 0760405561 SHAFT SEAL RING A 40X55X6 V. |
236 Kč | |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR |
570 Kč | |
| 10 | 79232023024 PRIMARY GEAR 24T. |
1 642 Kč | |
| 11 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 12 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 13 | 79030274000 CIRCLIP PISTON PIN |
260 Kč | |
| 14 | 79030231044 PISTON RING SET |
2 025 Kč | |
| 40 | 79030507000 I PISTON I CPL. 250 |
7 050 Kč | |
| 40 | 79030507000 II PISTON I CPL. 250 |
7 050 Kč | |
| 98 | 00050002316 CRANKSHAFT REP. KIT |
2 074 Kč | |
| 99 | 00050000239 PISTON KIT I 250 4STR 2017 |
7 146 Kč | |
| 99 | 00050000240 PISTON KIT II 250 4STR 2017 |
7 146 Kč |
