Díly pro FRAME

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 2500300110028
FRAME \'\'250Q1\'\' WEISS
39 760 Kč
2 2500300201033A
REAR FRAME TOP
4 807 Kč
3 25003002020
SUBFRAME L/S
2 183 Kč
4 25003002130
SUBFRAME RIGHT
2 183 Kč
5 79203113000
ENGINE BRACE LEFT
554 Kč
6 60011093075
RUBBER CABLE TIE 75MM 03
60 Kč
7 79607012000
TANK REST RUBBER
153 Kč
8 59001037000
SPECIAL SCREW M8X26 WS=10
53 Kč
9 58111076000
CABLE SUPPORT KHS NR.150-47610
65 Kč
10 78103035000
STEERING HEAD LOCK
773 Kč
11 0934080003
HEXAGON NUT DIN0934-M 8
18 Kč
12 77203014000
ENGINE BRAC.SCR. M10X115
126 Kč
13 79203114044
ENGINE BRACE RIGHT CPL.
554 Kč
14 0035080206S
SHCS M8X20 TX45
52 Kč
15 0035080156S
AH-COLLAR SCREW M8X15 TORX45
23 Kč
16 47106003160
QUICK RELEASE RUBBER GROMMET
57 Kč
17 0017060205
SCREW FOR PLASTIC K60X20 SW6
29 Kč
18 0019080306S
COUNTER-SUNK SCREW ISA45 M8X30
33 Kč
26 54310086100
SELF LOCKING NUT M10 CU WS=14
20 Kč
27 0025080306
HH COLLAR SCREW M8X30 TX40
32 Kč
28 0125060003
WASHER DIN0125-A 6,4
13 Kč
29 0025060406
HH COLLAR SCREW M6X40 TX30
29 Kč
30 7900309400033
FRAME PROTECTION SET BLACK
863 Kč
31 0014050123
HH COLLAR SCREW M 5X12 WS=6
29 Kč
32 54803092060
BUSH F. FRAME PROTECTION 03
73 Kč
33 0025060126
HH COLLAR SCREW M6X12 TX30
29 Kč
34 44011076140
CABLE TIE 140/2,5MM BLACK
10 Kč
34 44011076305
CABLE TIE 300/4,8MM BLACK
10 Kč
36 79603041000
FOOTREST R/S EXC 2017
858 Kč
39 79003044000
FOOTREST SPRING R/S 2016
33 Kč
40 79603040000
FOOTREST L/S EXC 2017
858 Kč
41 54803044000
BOLT FOR FOOT PED 03
203 Kč
42 79003045000
FOOTREST SPRING L/S 2016
33 Kč
43 0125100003
WASHER DIN 125 A 10.5
13 Kč
44 0094032250
PIN DIN 0094-3.2X25 NIRO
5 Kč
45 79603040033
FOOTREST-SET
1 440 Kč
46 50303089000
ANGEL PIECE \'97
50 Kč
47 55007016001
PVC-HOSE 7X10 PER METER
87 Kč
50 79003096000
ENGINE SPROCKET COVER 250/350
246 Kč
59 79003053000
CHAIN SLIDER LOWER PART CPL.
126 Kč
64 79003053010
CHAIN SLIDING KIT BELOW CPL.16
126 Kč
99 79003096010
SPROCKET COVER KIT
318 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL ENGINE GUARD ENGINE GUARD EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL FUEL PUMP FUEL PUMP HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS INSTRUMENTS / LOCK SYSTEM INSTRUMENTS / LOCK SYSTEM LIGHTING SYSTEM LIGHTING SYSTEM MASK, FENDERS MASK, FENDERS REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SIDE / CENTER STAND SIDE / CENTER STAND SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS WP SHIMS FOR SETTING WP SHIMS FOR SETTING

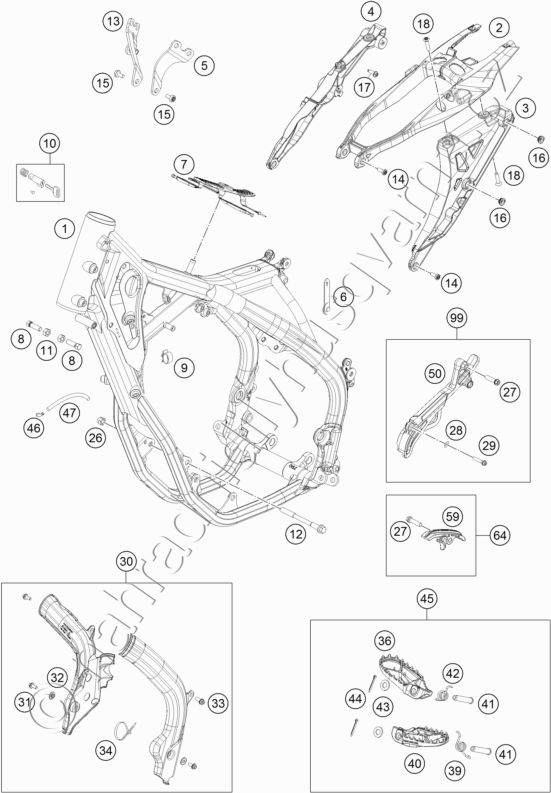

FRAME
