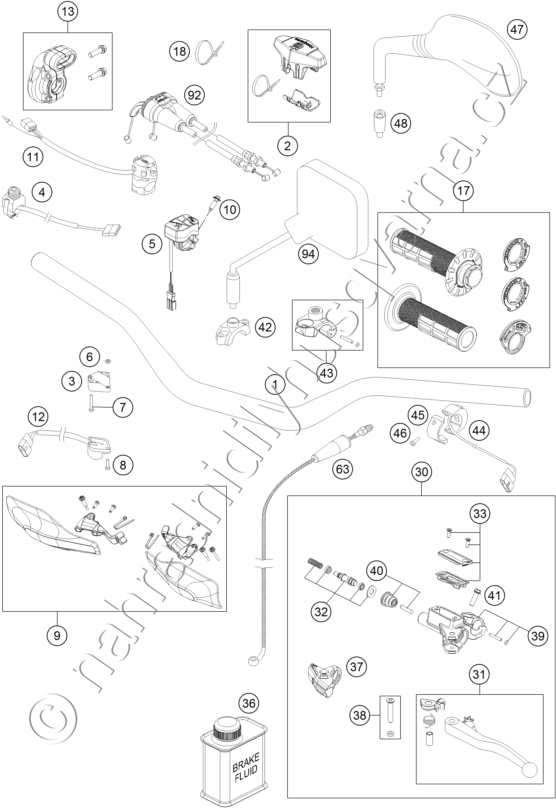

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7800200100030 HANDLEBAR |
2 819 Kč | |
| 2 | 80302602044 BAR PAD CPL. |
570 Kč | |
| 3 | 13011070060 ADAPTER FOR FLASHER SWITCH \'98 |
71 Kč | |
| 4 | 78111074000 STARTER BUTTON GREY 13 |
703 Kč | |
| 5 | 79039974044 MAP SELECT SWITCH CPL. |
2 603 Kč | |
| 6 | 0934040003 HEXAGON NUT DIN0934-M 4 |
17 Kč | |
| 7 | 0084040223 CYL.HEAD SCREW DIN0084-M 4X22A |
17 Kč | |
| 8 | 0985040203 FLAT HEAD SCREW DIN7985-M 4X20 |
17 Kč | |
| 9 | 2500208204428 HANDGUARD RIGHT + LEFT WHITE |
738 Kč | |
| 10 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 11 | 50311070100 H.LIGHT SWITCH CEV EGS AUS.\'98 |
1 219 Kč | |
| 12 | 50311029000 FLASHER SWITCH CEV \'98 |
536 Kč | |
| 13 | 79002010025 THROTTLE CONTROL CASING CPL. |
979 Kč | |
| 17 | 79002021100 GRIP SET |
619 Kč | |
| 18 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 18 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 30 | 25002130044 MASTER CYLINDER DOT CPL. 9,5MM |
8 010 Kč | |
| 31 | 50302031300 CLUTCH LEVER CPL. 2009 |
863 Kč | |
| 32 | 25002132000 REP. KIT PISTON DOT 9,5MM |
2 046 Kč | |
| 33 | 25002033000 COVER HYDR. CLUTCH DOT CPL. |
533 Kč | |
| 36 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 37 | 76502037000 PROTECT.CAP FOR LEVER PERCH 13 |
562 Kč | |
| 38 | 50302038200 LEVER SCREW SHORT CPL. 09 |
437 Kč | |
| 39 | 25002044000 CLAMP CPL. SEND BLASTED |
502 Kč | |
| 40 | 76502046000 PUSH ROD CPL. 13 |
635 Kč | |
| 41 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 42 | 58012040150 CLAMP FOR MIRROR \'94 |
310 Kč | |
| 43 | 50302044000 CLAMP FOR MIRROR CPL. 09 |
1 277 Kč | |
| 44 | 50311074000 ENGINE STOP SWITCH CEV |
969 Kč | |
| 45 | 50311074050 CLAMP ENGINE STOP SWITCH |
Na dotaz | 1 |
| 46 | 0912040203 AH SCREW DIN 912-M 4X20 |
18 Kč | |
| 47 | 58412040000 MIRROR L/S 98 |
586 Kč | |
| 47 | 58412041000 MIRROR R/S 98 |
586 Kč | |
| 48 | 58412040050 SUPPORT FOR MIRROR LC4 \'98 |
313 Kč | |
| 63 | 26132063000 CLUTCHPIPE |
2 195 Kč | |
| 92 | 79602091000 THR.CABLE |
2 085 Kč | |
| 94 | 58012040000 REAR MIRROR L/S |
714 Kč | |
| 94 | 58012140000 REAR MIRROR R/S |
701 Kč |
