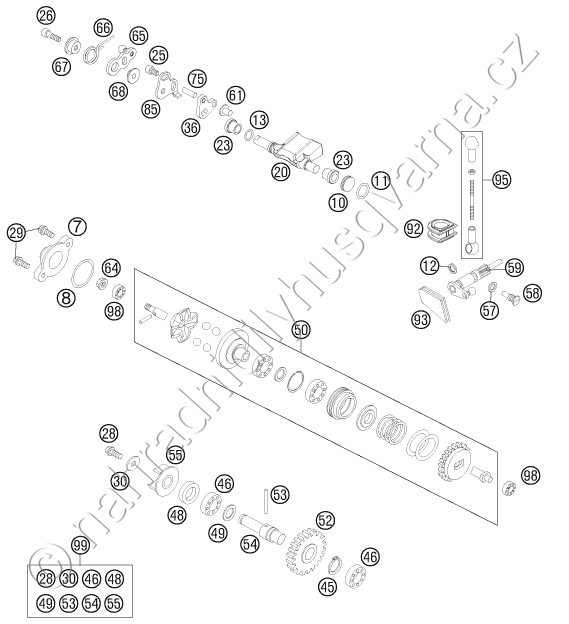

Díly pro EXHAUST CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 54637070200 CLOSING COVER 2003 |
326 Kč | |
| 8 | 0770020200 O-RING 21,95X1,78 NBR |
20 Kč | |
| 10 | 47037010000 CLOSING COVER 85 SX 2003 |
130 Kč | |
| 11 | 0770120020 O-RING 12,00X2,00 NBR 70 |
17 Kč | |
| 12 | 54632090000 SEAL RING DH/GR 12X16X3 |
146 Kč | |
| 13 | 0770008015 O-RING 8,00X1,5 |
17 Kč | |
| 20 | 47137020000 CONTROL FLAP |
2 133 Kč | |
| 23 | 47037023000 BEARING SLEEVE 85 SX 2003 |
214 Kč | |
| 25 | 0912050063 AH SCREW DIN 912 M 5X6 |
20 Kč | |
| 26 | 0912050163 AH SCREW DIN0912-M 5X16 |
17 Kč | |
| 28 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 29 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 30 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 36 | 47037036000 DRIVER SHEET 85 SX 2003 |
522 Kč | |
| 45 | 0471100010 CIRCLIP DIN0471-10X1 |
14 Kč | |
| 46 | 0625006087 GROOVED BALL BEAR. 608 2RS C3 |
244 Kč | |
| 48 | 0760082472 SHAFT SEAL RING 8X24X7 A DUO |
61 Kč | |
| 49 | 54334015000 WASHER 10X14X0,5 STEEL |
21 Kč | |
| 50 | 47037050044 CENTRIFUGAL TIMER CPL. 03 |
7 111 Kč | |
| 52 | 47035054026 WATER PUMP GEAR 2003 |
140 Kč | |
| 53 | 47035058000 PIN 2X22 |
49 Kč | |
| 54 | 47035054000 WATER PUMP SHAFT 85 SX 2003 |
629 Kč | |
| 55 | 47035055000 WATER PUMP WHEEL 85 SX 2003 |
222 Kč | |
| 57 | 0603040801 COPPER GASKET DIN7603- A4X8X1 |
31 Kč | |
| 58 | 47037058000 LOCK SCREW CONTROL SHAFT 03 |
50 Kč | |
| 59 | 47037057100 CONTROL SHAFT 85 SX 06 |
1 923 Kč | |
| 61 | 47035061000 SCREW M6X8 |
113 Kč | |
| 64 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 65 | 47037065000 CONTROL LEVER 85 SX 2003 |
323 Kč | |
| 66 | 54637066000 OVERLOAD SPRING |
61 Kč | |
| 67 | 47037067000 SPRING SLEEVE 85 SX 2003 |
95 Kč | |
| 68 | 47037068000 BEARING SLEEVE 85 SX 2003 |
130 Kč | |
| 75 | 0007050180 CYLINDER PIN DIN 7-5X18(M6) |
5 Kč | |
| 85 | 47137086000 STOP PLATE |
119 Kč | |
| 92 | 47137091000 GASKET RUBBER |
199 Kč | |
| 93 | 47037093000 GASKET RUBBER BOTTOM 85 SX |
79 Kč | |
| 95 | 47037095044 CONNECT. ROD CPL. 85 SX 03 |
507 Kč | |
| 98 | 54637098100 BALL BEARING 626LLBC3/5K |
190 Kč | |
| 99 | 47035055010 WATER PUMP REP. KIT 85 SX |
1 096 Kč |
