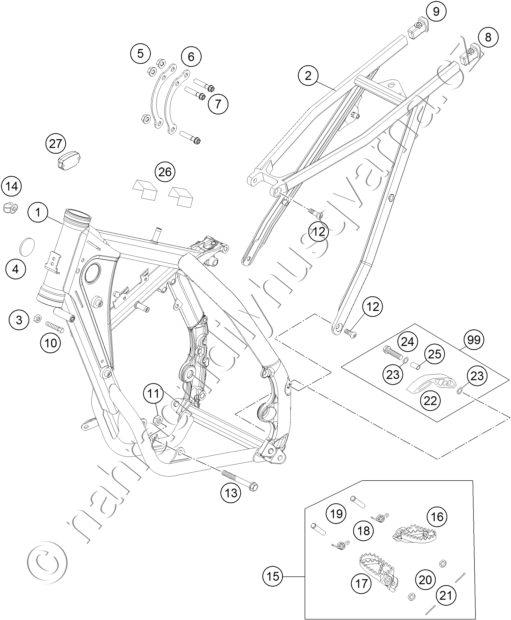

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 4710300100028 FRAME \'\'471M3\'\' 85 TC 2014 |
32 563 Kč | |
| 2 | 47103002000 SUB FRAME |
7 089 Kč | |
| 3 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
| 4 | 54606004000 PLUG 37MM |
58 Kč | |
| 5 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 6 | 47103013100 REINFORCING |
154 Kč | |
| 7 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 8 | 78103002010 SUB FRAME APPLICATION LEFT |
185 Kč | |
| 9 | 78103002020 SUB FRAME APPLICATION RIGHT |
185 Kč | |
| 10 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 11 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 12 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
| 13 | 47003013000 ENGINE BRACKET SCREW 85 SX |
154 Kč | |
| 14 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 15 | 47103040033 FOOTREST CPL. 14 |
1 822 Kč | |
| 16 | 47103040000 FOOTREST L/S |
666 Kč | |
| 17 | 47103041000 FOOTREST R/S |
666 Kč | |
| 18 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 19 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 20 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 21 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 22 | 51103053000 CHAIN SLIDING PIECE BELOW \'97 |
260 Kč | |
| 23 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
| 24 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 25 | 51103053051 BUSHING 8,2X10X20 |
79 Kč | |
| 26 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 |
39 Kč | |
| 27 | 81312920000 HOUR METER HQV |
1 710 Kč | |
| 99 | 51103053110 CHAIN SLIDING KIT BELOW MINI |
260 Kč |
