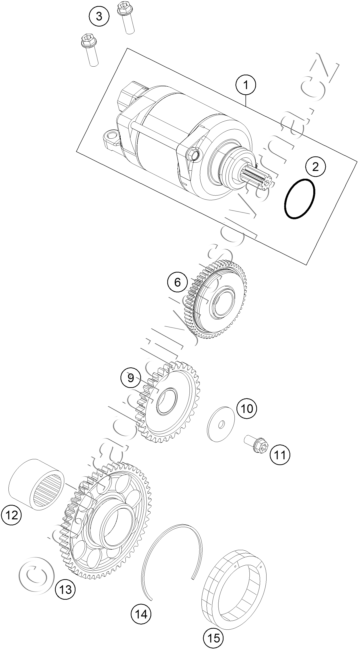

Díly pro ELECTRIC STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79240001000 E-STARTER ENGINE CPL. |
4 639 Kč | |
| 2 | 0770250030 O-RING 25,00X3,00 NBR 70 |
17 Kč | |
| 3 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 6 | 79240016000 TORQUE LIMITER |
3 347 Kč | |
| 9 | 79240022000 INTERMEDIATE STARTING GEAR |
1 681 Kč | |
| 10 | 79240017000 STOP DISC 6X26X1,5 |
49 Kč | |
| 11 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 12 | 0618253216 NEEDLE BUSH HK2516 25/32/16 02 |
164 Kč | |
| 13 | 79240020000 FREE WHEEL GEAR |
2 702 Kč | |
| 14 | 0472057150 CIRCLIP DIN0472-57X1,50 |
36 Kč | |
| 15 | 79240026000 FREEWHEEL |
1 934 Kč |
