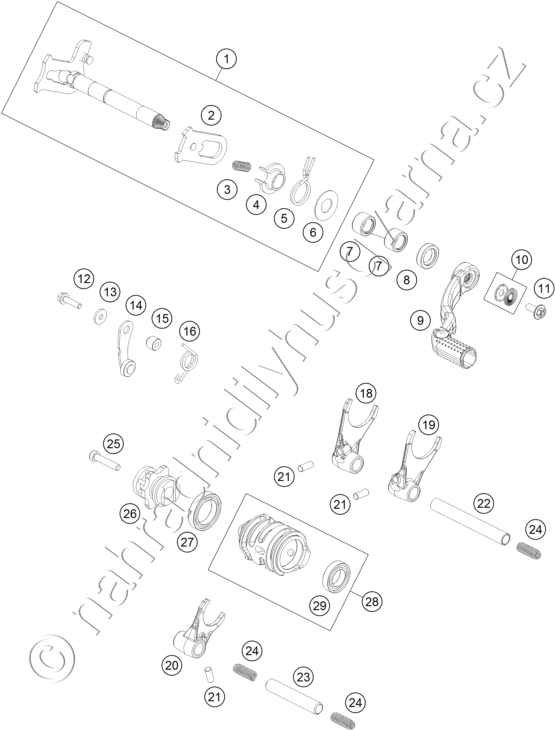

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54834005133 SHIFT SHAFT ASSY |
1 661 Kč | |
| 2 | 61234008044 SLIDING PLATE |
150 Kč | |
| 3 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 4 | 54634020000 SPRING GUIDE |
116 Kč | |
| 5 | 54834014000 RETURN SPRING 03 |
66 Kč | |
| 6 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 7 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 8 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 9 | 50434031000 SHIFT LEVER CPL. |
1 493 Kč | |
| 10 | 50233041500 PAIR NORDLOCK WASHER M6 |
39 Kč | |
| 11 | 0024060156S HH COLLAR SCREW M6X15 TX30 |
12 Kč | |
| 12 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 13 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 14 | 50334024144 LOCATING LEVER CPL. 08 |
238 Kč | |
| 15 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 16 | 54834023000 LOCKING LEVER SPRING 03 |
69 Kč | |
| 18 | 50434003000 SHIFTING FORK 1ST/3RD GEAR |
1 150 Kč | |
| 19 | 50434002000 SHIFTING FORK 2ND/4TH GEAR |
1 150 Kč | |
| 20 | 50434001000 SHIFTING FORK 5/6 GEAR |
1 150 Kč | |
| 21 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 |
50 Kč | |
| 22 | 54834020000 SHIFT. RAIL C. SHAFT 250/300 |
246 Kč | |
| 23 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 |
206 Kč | |
| 24 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
| 25 | 0012060303 AH SCREW DIN6912 M6X30 8.8 |
28 Kč | |
| 26 | 50434015033 SHIFT DRUM LOCATING CPL. |
651 Kč | |
| 27 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 28 | 50434012033 SHIFTING DRUM CPL. |
2 338 Kč | |
| 29 | 0625069034 BALL BEARING 6903 C4 |
313 Kč |
