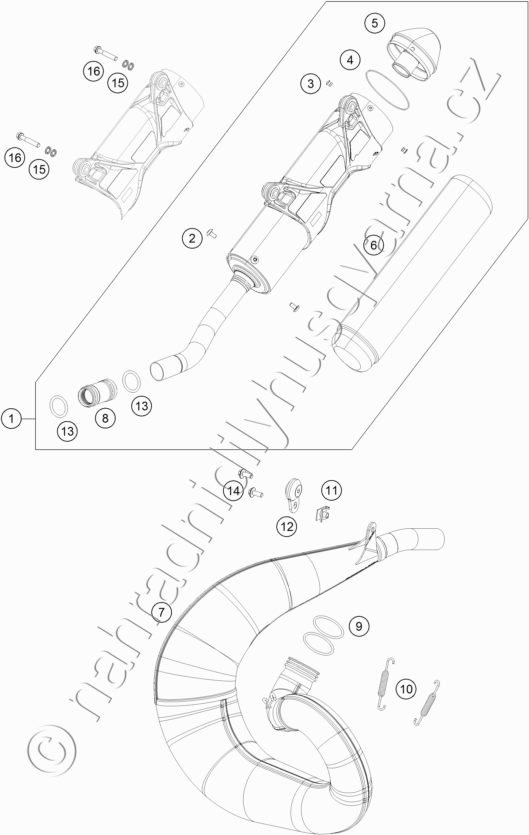

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55405079000 SILENCER |
5 128 Kč | |
| 2 | 78105081010 SCREW TORX M5X10 |
15 Kč | |
| 3 | 0011480800 DUMMY RIVET 4,8X 8 NIRO |
39 Kč | |
| 4 | 0770740015 O-RING 74,00X1,50 FKM 75SH |
58 Kč | |
| 5 | 54805083260 ENDCAP CPL. |
2 272 Kč | |
| 6 | 55405078283 ROCKWOOL PREFORMED 283G |
882 Kč | |
| 7 | 55405007000 EXHAUST MANIFOLD |
7 560 Kč | |
| 8 | 55405057000 EXHAUST RUBBER |
318 Kč | |
| 9 | 0770440030 O-RING 44,00X3,00 VITON |
58 Kč | |
| 10 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 11 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 12 | 50305012000 SWINGELEMENT FOR EXHAUST PIPE |
257 Kč | |
| 13 | 55405058000 HOSE SPRING |
190 Kč | |
| 14 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 15 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 16 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč |
