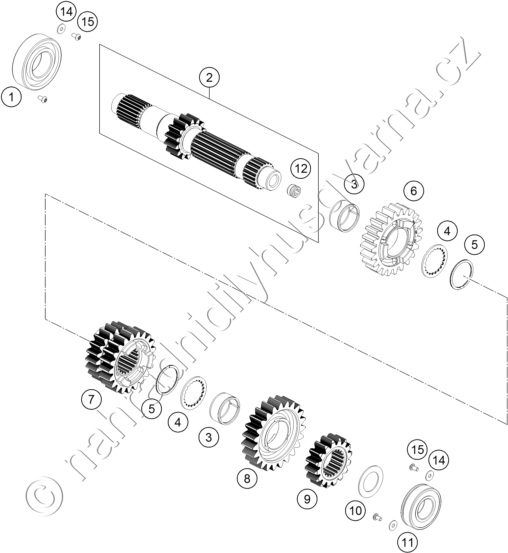

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 06252858161 BALL BEARING 58/28 C4 N |
408 Kč | |
| 2 | 76633001000 MAIN SHAFT CPL. |
6 245 Kč | |
| 3 | 0405242813G NEEDLE BEAR.K 24X28X13 DIVIDED |
459 Kč | |
| 4 | 76633040000 STOP DISK 24.6X33X1.5 |
195 Kč | |
| 5 | 0471027000 CIRCLIP XDNS-27 |
381 Kč | |
| 6 | 76633005000 IDLER GEAR 5. GEAR |
2 221 Kč | |
| 7 | 76633003000 SLIDING GEAR 3./4. GEAR |
2 904 Kč | |
| 8 | 76633006000 IDLER GEAR 6. GEAR |
2 221 Kč | |
| 9 | 76633002000 SOLID GEAR 2. GEAR |
1 240 Kč | |
| 10 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 11 | 0625060044 BALL BEARING 6004 DDUN C4 |
228 Kč | |
| 12 | 77333001160 GUIDE BUSHING |
108 Kč | |
| 14 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 15 | 073800501002 PAN HEAD SCREW M5X10 TX25 |
17 Kč |
