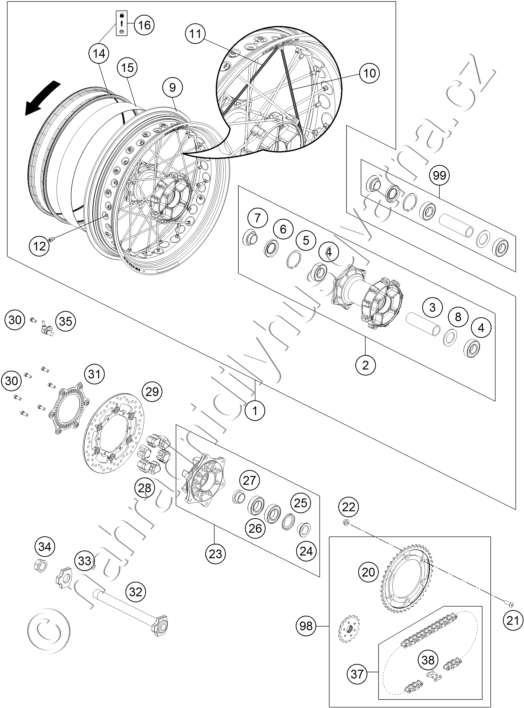

Díly pro REAR WHEEL
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 7501010114433 REAR WHEEL COMPELTE. 5X17\'\' TL BLACK |
17 471 Kč | |
2 | 7531001004433 REAR WHEEL HUB CPL. BLACK |
6 871 Kč | |
3 | 75310011000 BEARING SPACER TUBE L=106MM 07 |
422 Kč | |
4 | 0625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7 |
442 Kč | |
5 | 0472052200 CIRCLIP DIN0472-52X2 |
29 Kč | |
6 | 0760305271 SHAFT SEAL RING 30X52X7 |
63 Kč | |
7 | 60110013000 SPACER BUSH. REAR WHEEL R/S 06 |
326 Kč | |
8 | 60010015000 SPACER RING 03 |
220 Kč | |
9 | 7501047000033 FELGE HINTEN 5.0\'\'X17\'\' TL |
8 337 Kč | |
10 | 75010073196 SPOKE M4,5X196-16G 17\'\' INOX |
63 Kč | |
11 | 81210171181 SPOKE M4,5X0,75X181 |
94 Kč | |
12 | 81210072100 SPOKE NIPPLE QUADRAX M4,5 |
45 Kč | |
14 | 75010177044 GASKET RUB. 17X5\'\' CPL.W. VALVE |
1 113 Kč | |
15 | 75010073000 RIM BAND 17\'\'X 5.00\'\' |
464 Kč | |
16 | 81210076000 VALVE CPL. |
239 Kč | |
20 | 75010051042 SPROCKET STEALTH 42T 07 |
1 556 Kč | |
20 | 75010051045 SPROCKET 45T 08 |
1 556 Kč | |
21 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
22 | 06923080003 HEX NUT EN 1661 M8 WS13 |
23 Kč | |
23 | 7501005004491 SPROCKET SUPPORT CPL. SILVER |
4 353 Kč | |
24 | 60110012000 SPACER BUSH. SPROCKET SUPP. 06 |
374 Kč | |
25 | 60110016000 NILOS RING 6006AV |
177 Kč | |
26 | 0625060060 BALL BEARING 6006 DDU2CG23S6NM |
389 Kč | |
27 | 60110014000 SPACER BUSH. SPR. SUPP. IN. 06 |
307 Kč | |
28 | 54610459000 RUBBER DAMPING BLOCK \'91 |
119 Kč | |
29 | 76510160000 BRAKE DISK REAR D=240 |
3 831 Kč | |
30 | 014580060166S SHCS ISO 14580 M6X16 SL |
20 Kč | |
31 | 76542021000 SENSOR WHEEL ABS REAR |
594 Kč | |
32 | 75310085144 WHEEL SPINDLE CPL. |
1 421 Kč | |
33 | 60010084000 CHAIN TENSIONER R/S LC8 03 |
349 Kč | |
34 | 60010086000 COLLAR NUT WH. SPINDLE REAR 03 |
203 Kč | |
35 | 76042025000 ABS-SENSOR |
1 216 Kč | |
37 | 78010167118 CHAIN DID 118 ROLLS |
2 577 Kč | |
38 | 78010166100 RIVETING LINK FOR 78010167118 |
199 Kč | |
98 | 00050002074 DRIVETRAIN KIT 701 SM 16T/42T |
3 544 Kč | |
99 | 75010015000 REAR WHEEL REP. KIT |
1 371 Kč |
