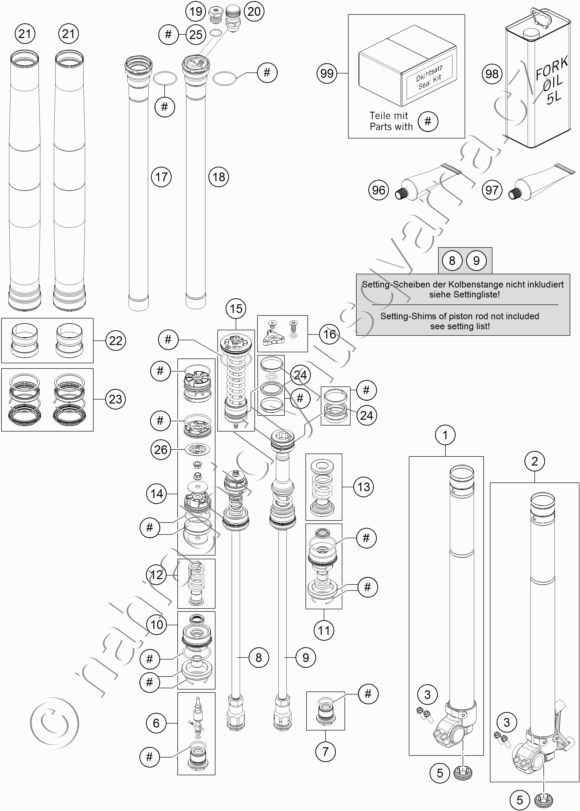

Díly pro FRONT FORK DISASSEMBLED
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 48600864s2 |
Na dotaz | 1 |
2 | 48601699s1 |
Na dotaz | 1 |
3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
5 | 48600692 RUBBER CAP D=26,4 |
92 Kč | |
6 | 48601484S ADJUSTING CAP M20 CPL. |
979 Kč | |
7 | 48601533S PLUG M20 CPL. |
522 Kč | |
8 | 48601697s1 |
Na dotaz | 1 |
9 | 48601695s1 |
Na dotaz | 1 |
10 | 48601462S1 SCREW SLEEVE OIL CPL. |
2 941 Kč | |
11 | 48601452S1 SCREW SLEEVE AIR CPL. |
2 941 Kč | |
12 | 48600578S SPRING REBOUND + SPRING GUIDE |
522 Kč | |
13 | 48601578S SPRING REBOUND + SPRING GUIDE |
522 Kč | |
14 | R14061 PISOTN SET AIR FORK D34 |
1 812 Kč | |
15 | 48601485S COMPRESSION UNIT CPL. |
5 314 Kč | |
16 | R14062 SMALL PARTS KIT SCREW CAP |
63 Kč | |
17 | 48601454S1 SCREW CAP + TUBE CPL. R/S |
6 574 Kč | |
18 | 48601453S1 SCREW CAP + TUBE CPL. L/S |
6 574 Kč | |
19 | 48601495 PLUG SCREW M8X1 BN44 |
227 Kč | |
20 | 48601494S VALVE M8X1 INCL. SCREW CAP |
979 Kč | |
21 | 48601671 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
22 | R14047 REP. KIT GUIDE BUSHINGS |
631 Kč | |
23 | R14046 REPAIR KIT 4860 PACK |
1 812 Kč | |
24 | 04100002 X-RING 26,57X3,53 FKM 80SH. |
145 Kč | |
25 | 48600044 O-RING NBR 6X1,5 |
29 Kč | |
26 | 48601459 CHECKVALVE SHIM |
350 Kč | |
96 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
97 | 00062010051 CENTOPLEX 2 EP - 45G MP-GREASE |
326 Kč | |
98 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
99 | R14060 SEALING KIT |
1 812 Kč |
