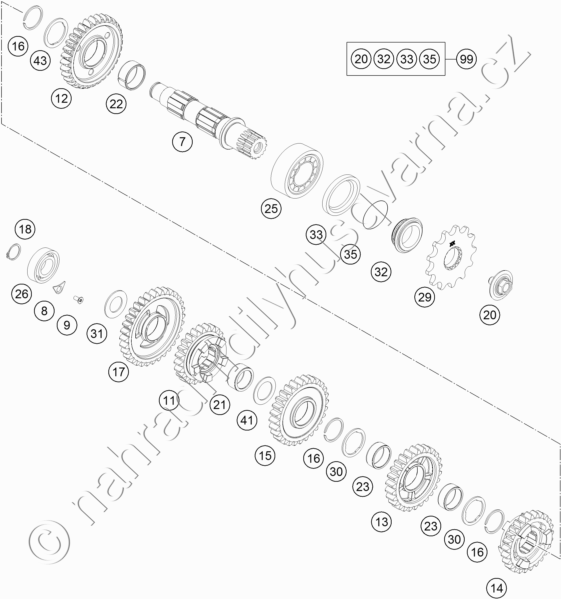

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 77733110100 COUNTER SHAFT |
3 109 Kč | |
| 8 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 9 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 11 | 72033016100 SLIDING GEAR 6TH GEAR T=30 |
1 682 Kč | |
| 12 | 77733112100 IDLER GEAR 2 ND. |
2 160 Kč | |
| 13 | 77733114200 IDLER GEAR 4. GEAR |
2 160 Kč | |
| 14 | 77733115200 SLIDING GEAR 5TH GEAR T=23 |
2 160 Kč | |
| 15 | 77733113200 IDLER GEAR 3.G, Z=24 |
2 160 Kč | |
| 16 | 0417024000 CIRCLIP WS24 |
25 Kč | |
| 17 | 77733011100 IDLER GEAR 1TH; Z=32 |
2 160 Kč | |
| 18 | 0471170015 CIRCLIP DIN 0471-17X1, 5 |
21 Kč | |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER |
94 Kč | |
| 21 | 0405202612 NEEDLE BEARING K 20X26X12 |
323 Kč | |
| 22 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. |
103 Kč | |
| 23 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 25 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 26 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 29 | 79233029013 SPROCKET 13T |
360 Kč | |
| 29 | 79233129014 ENGINE SPROCKET 14Z |
360 Kč | |
| 30 | 77733043000 STOP DISC 23,4X31X1,5 |
129 Kč | |
| 31 | 77233020000 STOP DISK 17,2X30X1,3 |
129 Kč | |
| 32 | 78133014000 SPACER SLEEVE COUNTER |
414 Kč | |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 41 | 54833080000 STOP DISC 20,2X30X1 |
73 Kč | |
| 43 | 77733044000 STOP DISC 24X32X1,5 |
129 Kč | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE |
538 Kč |
