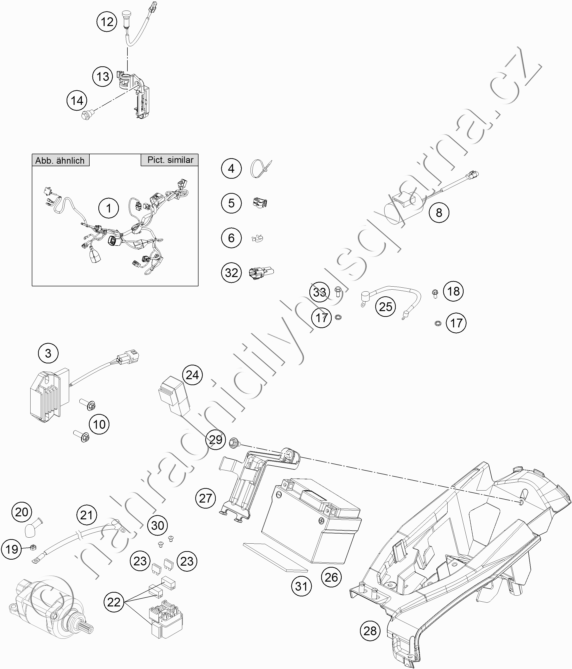

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79211075200 WIRING HARNESS 2017 |
8 020 Kč | |
| 3 | 77211034000 VOLTAGE REGULATOR 09 |
3 476 Kč | |
| 4 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 4 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 4 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 5 | 83013026000 CABLE GUIDE |
39 Kč | |
| 6 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 8 | 77711035000 CONDENSATOR |
1 508 Kč | |
| 10 | 0024060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 12 | 81214083000 INDICATOR LIGHT LED YELLOW FI |
501 Kč | |
| 13 | 77214098000 HOLDER INDICATOR LIGHT SX |
60 Kč | |
| 14 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 17 | 58411098100 CONTACT WASHER M6 VSV-K6 |
23 Kč | |
| 18 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 19 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 20 | 77240099000 PROTECTION CAP F. STARTER ENG. |
164 Kč | |
| 21 | 58411059100 STARTERCABLE 700 MM \'97 |
289 Kč | |
| 22 | 58211058000 STARTER RELAY 12V \'99 |
1 294 Kč | |
| 23 | 58011109110 FUSE 10 A 2000 |
63 Kč | |
| 24 | 61111057000 RELAY CM1A-R-12V-H80 07 |
257 Kč | |
| 25 | 58711086000 WIRING HARNESS BATTERY DUKE\'99 |
292 Kč | |
| 26 | 77311953000 LITHIUM ION BATTERY 5S |
2 603 Kč | |
| 27 | 79011056100 BATTERY BOX SUPPORT |
148 Kč | |
| 28 | 25011055100 BATTERY BOX |
607 Kč | |
| 30 | 0902060083 AH OVAL SCREW ISO 7380 M 6X8 |
23 Kč | |
| 31 | 59003001099 METAMOLL 90X45X3MM 03 |
39 Kč | |
| 32 | 69011040000 END PLUG CAN-BUS 08 |
251 Kč | |
| 33 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč |
