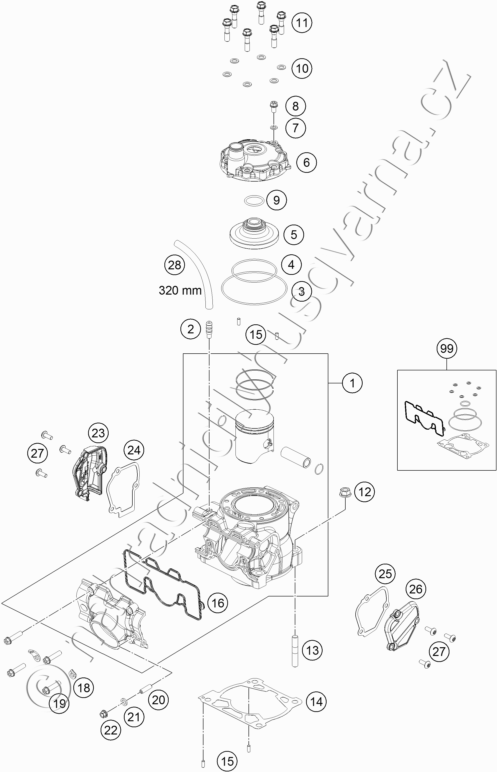

Díly pro CYLINDER, CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50430038100 CYLINDER + PISTON CPL. 125 |
19 130 Kč | |
| 2 | 58336020090 VACUUM CONNECTION M 6X1 |
116 Kč | |
| 3 | 0770890200 O-RING 89X2 NBR 70 SH |
37 Kč | |
| 4 | 0770600200 O-RING 60X2 FPM 75SH |
65 Kč | |
| 5 | 50430060000 COMBUSTION CHAMBER INLAY |
815 Kč | |
| 6 | 50430106000 CYLINDER HEAD |
1 633 Kč | |
| 7 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 8 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 9 | 07702300251 O-RING 23,00X2,5 NBR 70 SH |
17 Kč | |
| 10 | 0603070121 CU-SEAL RING DIN7603- 7,3X12X1 |
23 Kč | |
| 11 | 50430079000 CYLINDER HEAD SCREW |
77 Kč | |
| 12 | 50330045000 HH COLLAR NUT M 8 WS=12 |
23 Kč | |
| 13 | 0835080326 STUD DIN 835 M8X32 |
52 Kč | |
| 14 | 50430035015 CYLINDER BASE GASKET 0.15MM |
129 Kč | |
| 14 | 50430035020 CYLINDER BASE GASKET 0.20MM |
129 Kč | |
| 14 | 50430035025 CYLINDER BASE GASKET 0.25MM |
129 Kč | |
| 14 | 50430035040 CYLINDER BASE GASKET 0.40MM |
129 Kč | |
| 14 | 50430035050 CYLINDER BASE GASKET 0.50MM |
129 Kč | |
| 14 | 50430035075 CYLINDER BASE GASKET 0.75MM |
129 Kč | |
| 15 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 16 | 50437046000 GASKET CONNECTION FLANGE |
167 Kč | |
| 18 | 51005074000 RETAINING PLATE |
31 Kč | |
| 19 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 20 | 0913060203 THREAD PIN DIN0913-M 6X20 |
26 Kč | |
| 22 | 77336088106 COLLAR NUT M6X1 SW8 |
231 Kč | |
| 23 | 5043700700033 EXHAUST CONTROL COVER R/S |
390 Kč | |
| 24 | 50437008100 EXHAUST CTRL COVER GASKET RHS |
158 Kč | |
| 25 | 50437006100 EXHAUST CTRL COVER GASKET LHS |
158 Kč | |
| 26 | 5043700500033 EXHAUST CONTROL COVER L/S |
390 Kč | |
| 27 | 58605083014 SCREW M5X14 TORX 25 07 |
34 Kč | |
| 28 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 99 | 50430097000 CYLINDER GASKET SET 125/150 16 |
966 Kč |
