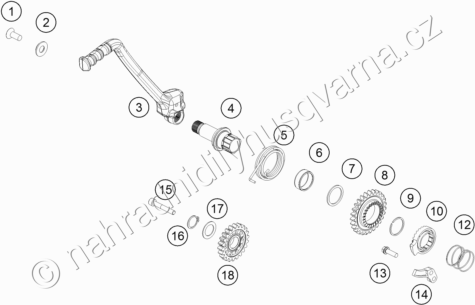

Díly pro KICK STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
| 2 | 54633037000 WASHER 8MM GALVANIZED |
103 Kč | |
| 3 | 79233070044 KICK STARTER CPL. |
2 450 Kč | |
| 4 | 79233050000 KICK STARTER SHAFT |
1 572 Kč | |
| 5 | 50433054100 KICK STARTER SPRING |
146 Kč | |
| 6 | 0405252910 NEEDLE BEAR K 25X29X10 |
134 Kč | |
| 7 | 54833044000 STOP DISC 25X31X1,5 |
73 Kč | |
| 8 | 79233051027 KICK STARTER WHEEL 27Z |
1 240 Kč | |
| 9 | 0417025000 CIRCLIP SW25 |
86 Kč | |
| 10 | 50433052000 KICK STARTER RATCHET |
1 346 Kč | |
| 12 | 58033028000 RATCHET GEAR SPRING 1,2 MM |
53 Kč | |
| 13 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 14 | 59033069000 BUMP PART |
379 Kč | |
| 15 | 0912060406 AH SCREW DIN0912 M 6X40 |
20 Kč | |
| 16 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 17 | 50333041000 STOP DISC 17,2X26X1 B |
45 Kč | |
| 18 | 79233053000 KICKSTART IDLER CPL. |
1 827 Kč |
