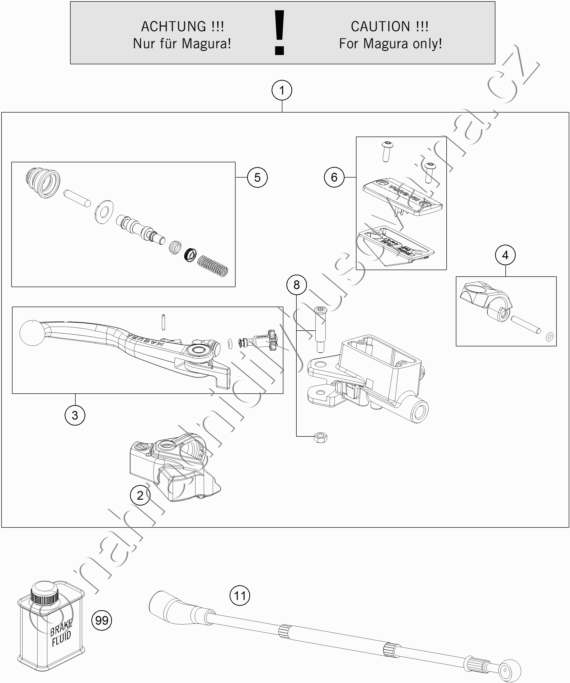

Díly pro FRONT BRAKE CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 24013001044 HAND BRAKE CYLINDER CPL. |
6 410 Kč | |
| 1 | 77713001044 HAND BRAKE CYLIND. CPL. SX 2014 |
5 982 Kč | |
| 2 | 24013004000 MUD CAP |
478 Kč | |
| 3 | 24013002000 HAND BRAKE LEVER CPL. |
959 Kč | |
| 4 | 25002044000 CLAMP CPL. SEND BLASTED |
502 Kč | |
| 5 | 24013008000 PISTON KIT |
1 472 Kč | |
| 6 | 24013003000 COVER CPL. |
525 Kč | |
| 8 | 50302038200 LEVER SCREW SHORT CPL. 09 |
437 Kč | |
| 9 | 77713003000 HAND BRAKE CYL. COVER |
525 Kč | |
| 10 | 77713008000 REPAIR KIT PISTON SX 2014 |
919 Kč | |
| 11 | 25013012000 BRAKE HOSE FRONT TC/FC |
2 242 Kč | |
| 11 | 54802005100 CLAMP CPL. 06 |
405 Kč | |
| 12 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 15 | 77713006000 LEVER SCREW |
371 Kč | |
| 20 | 77713002000 HAND BRAKE LEVER +SPRING SX 14 |
748 Kč | |
| 21 | 77713007000 PUSH ROD CPL. SX 2014 |
753 Kč | |
| 23 | 77713004000 PROTECTION CAP HAND BRAKE CYL. |
300 Kč | |
| 30 | 59013010000 BRAKEHO. FRONT 1235MM 2000 |
2 038 Kč | |
| 31 | 54813020100 BANJO BOLT M10X1X19 BLACK |
169 Kč | |
| 32 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 34 | 54802051000 VALVE |
318 Kč | |
| 99 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč |
