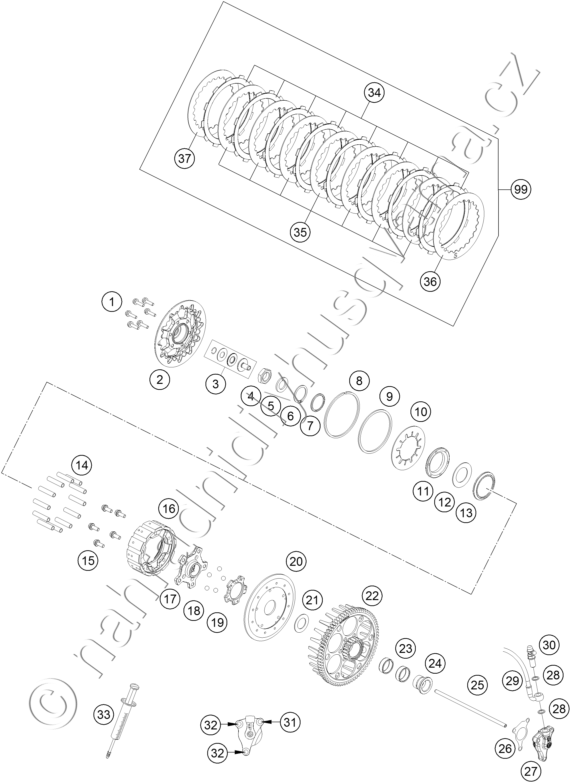

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79532186000 DISTANCE SCREW M5X19.5 |
81 Kč | |
| 2 | 79532103000 PRESSURE PLATE |
5 769 Kč | |
| 3 | 78132057144 PRESSURE PIECE CPL. |
494 Kč | |
| 4 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 5 | 58132072000 LOCK WASHER VSK 18 |
42 Kč | |
| 6 | 0471300152 CIRCLIP |
61 Kč | |
| 7 | 79532183000 DISTANCE RING 30X36X2 |
158 Kč | |
| 8 | 0417900250 CIRCLIP |
126 Kč | |
| 9 | 79532185000 LOCKING RING 88 |
959 Kč | |
| 10 | 79532105000 MAIN SPRING 1235N |
799 Kč | |
| 11 | 79532102050 CLAMP HUB 5MM |
1 472 Kč | |
| 12 | 79532182000 TORQUE LIMITER SPRING 1100N |
510 Kč | |
| 13 | 79532181000 RELEASE RING |
1 120 Kč | |
| 14 | 77232004000 DRIVING SLEEVE D=7,95 L=38 |
66 Kč | |
| 15 | 79532107000 BOLT M6X14 |
49 Kč | |
| 16 | 79532102010 INNER HUB |
5 609 Kč | |
| 17 | 79532102020 HUB CARRIER |
8 334 Kč | |
| 18 | 79532168000 BALL |
61 Kč | |
| 19 | 79532102030 RAMP INSERT 30° |
2 242 Kč | |
| 20 | 79532102040 BACK PLATE INSERT |
4 807 Kč | |
| 21 | 79532120000 THRUST WASHER |
350 Kč | |
| 22 | 79432101076 CLUTCH BASKET |
6 975 Kč | |
| 23 | 0405252910 NEEDLE BEAR K 25X29X10 |
134 Kč | |
| 24 | 78132015100 COLLARSLEEVE |
441 Kč | |
| 25 | 79432054000 PUSH ROD |
300 Kč | |
| 26 | 59032065100 GASKET F. OUTPUT CYLINDER |
45 Kč | |
| 27 | 79432061044 OUTPUT CYL. DOT KPL. 27MM |
4 382 Kč | |
| 28 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 29 | 26132063000 CLUTCHPIPE |
2 195 Kč | |
| 30 | 59032062000 HOLLOW SCREW + COPPER GASKET |
568 Kč | |
| 31 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 32 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 33 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 34 | 79532011000 LINING DISC 1,95MM |
372 Kč | |
| 35 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 |
183 Kč | |
| 36 | 78932010000 INTERMEDIATE DISC 1MM |
204 Kč | |
| 37 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
| 99 | 79532010033 CLUTCH DISC PACKAGE |
3 733 Kč |
