Díly pro ENGINE CASE

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 77730000144
ENGINE CASE CPL.
30 042 Kč
2 58030080000
LOCATING SCREW M8 L=23
382 Kč
3 58030081000
CU-SEAL RING 8 X 14 X 3
42 Kč
4 0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
23 Kč
5 0906100100
PIPE PLUG DIN 906 M10X1
71 Kč
6 78036081000
HOLDING BOLT M14X1,5
87 Kč
7 0770110015
O-RING 1,5x11 SILICON
57 Kč
8 0025060556
HH COLLAR SCREW M6X55 TX30
29 Kč
9 0025060656
HH COLLAR SCREW M6X65 TX30
29 Kč
10 80030058060
OIL JET \'\'60\'\' M4
236 Kč
11 77230066000
THROTTLE M5X10X0,5
188 Kč
12 81230164050
OIL JET ANGLED 50
212 Kč
13 0770035020
O-RING 3,5X2,00 NBR
4 Kč
14 0912040103
AH.SCREW DIN0912-M 4X10
20 Kč
15 60030063050
OIL JET 50 M5
159 Kč
16 59030058000
JET 100 BING(44-031/180) M4
60 Kč
17 59030024000
DOWEL 17 X 19 X 12
94 Kč
18 54630027000
DOWEL BUSHING 13,8X11X12
143 Kč
19 59030023000
DOWEL SLEEVE 6X8X11.5
82 Kč
20 75030010100
CASE BUSH
195 Kč
21 58038022000
CU-SEAL RING DIN7603-12X18X1,5
28 Kč
22 58030021100
OILDRAIN PLUG WITH MAGNET
196 Kč
23 77038022000
OIL INTAKEPIPE
116 Kč
24 0402050080
CYLINDER ROLLER ZRO 5X8
34 Kč
25 0025060856
HH COLLAR SCREW M6X85 TX30
29 Kč
60 77730099000
GASKET SET 250 SX-F
6 058 Kč

Další schémata

CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE

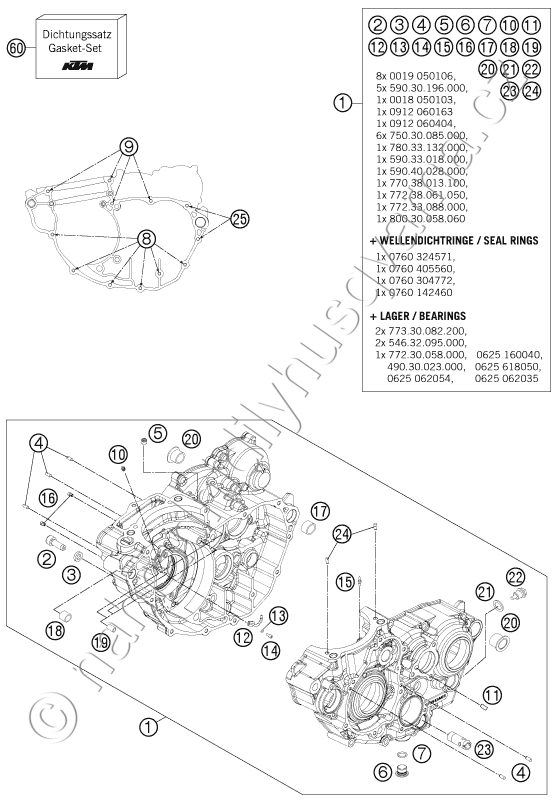

ENGINE CASE

Zvětšit schéma ENGINE CASE
ENGINE CASE
