Díly pro TRANSMISSION II - COUNTERSHAFT

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
7 77733110000
COUNTERSHAFT
3 109 Kč
8 78033132000
TAB WASHER BEARING COUNT.SHAFT
84 Kč
9 0019050106S
HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9
18 Kč
11 77733116100
SLIDING GEAR 6.G., Z=22
2 160 Kč
12 77733112000
IDLER GEAR 2ND G. T=30
2 160 Kč
13 77733114100
IDLER GEAR 4.G. Z=28
2 160 Kč
14 77733115100
SLIDING GEAR 5.G.,Z=23
2 160 Kč
15 77733113200
IDLER GEAR 3.G, Z=24
2 160 Kč
16 0417024000
CIRCLIP WS24
25 Kč
17 77733011000
IDLER GEAR 1ST G. T=32
2 473 Kč
20 59033034044
SCREW 10.9+SPRING WASHER
94 Kč
21 0405202612
NEEDLE BEARING K 20X26X12
323 Kč
22 0405242812
NEDDLE BEAR. K24X28X11,9 DIV.
103 Kč
23 0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
175 Kč
25 49030023000
CYLINDRICAL ROLLER BEARING NJ205
1 243 Kč
26 0625062035
BALL BEARING 6203 JR2 C3
215 Kč
28 0471170015
CIRCLIP DIN 0471-17X1, 5
21 Kč
29 79233029013
SPROCKET 13T
360 Kč
29 79233029014
SPROCKET 14T
360 Kč
30 77733043000
STOP DISC 23,4X31X1,5
129 Kč
31 77233020000
STOP DISK 17,2X30X1,3
129 Kč
32 54633014100
SPACER BUSHING 12MM
459 Kč
33 0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
65 Kč
35 0770020220
O-RING 25,12X1,78 NBR70
17 Kč
41 54833080000
STOP DISC 20,2X30X1
73 Kč
43 77733044000
STOP DISC 24X32X1,5
129 Kč
99 00050000941
COUNTER SHAFT REP.KIT 4 STROKE
538 Kč

Další schémata

CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE

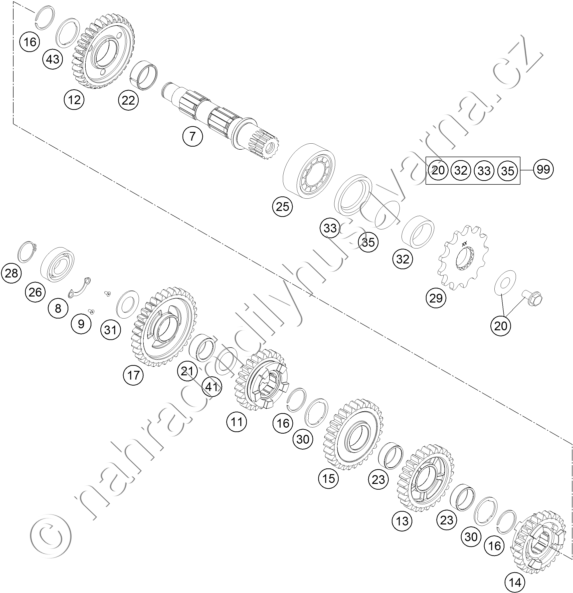

TRANSMISSION II - COUNTERSHAFT
