Díly pro CRANKSHAFT, PISTON

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 78130218000
CRANKSHAFT CPL.
23 703 Kč
2 78930015044
CON. ROD. REP. KIT
8 317 Kč
3 79430507000 I
PISTON I CPL. D95MM
7 717 Kč
3 79430507000 II
PISTON II CPL. D95MM
7 717 Kč
4 78930030000
COMPRESSION RING
942 Kč
5 78930032000
OIL SCRAPER RING
942 Kč
6 78130033000
PISTON PIN
1 163 Kč
7 77330074000
CIRCLIP
360 Kč
8 0625062071
BALL BEARING 6207 TM-SX07E 39
828 Kč
13 78030029200
NUT PRIMARY WHEEL M20X1,5
126 Kč
14 78132000032
PRIMARY GEAR
1 487 Kč
15 78036014200
TIMING GEAR 18T.
558 Kč
16 0888030037
WOODRUFF KEY DIN6888-3X3,7
21 Kč
19 0760354774
SHAFT SEAL RING 35X47X7 VITON
214 Kč
20 0888030050
WOODRUFF KEY DIN6888-3X5X13
20 Kč
98 00050002308
CRANKSHAFT REP. KIT 450/500
1 963 Kč
99 78130007010 I
PISTON KIT GR. I 450 EXC 14
7 146 Kč
99 78130007010 II
PISTON KIT GR. II 450 EXC 14
7 146 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

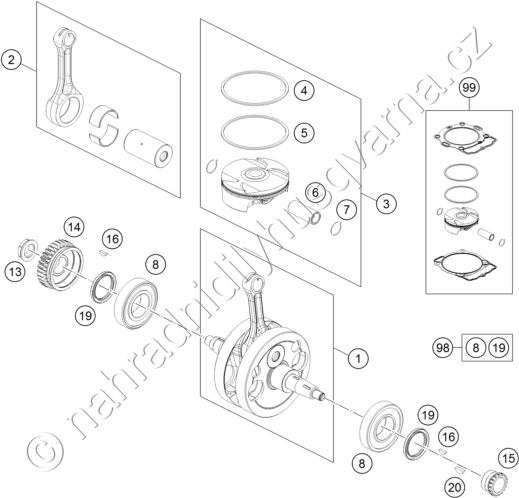

CRANKSHAFT, PISTON

Zvětšit schéma CRANKSHAFT, PISTON
CRANKSHAFT, PISTON
