SULKAR - Oficiální zastoupení Husqvarna

Díly pro TRANSMISSION I - MAIN SHAFT

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 78133001000
MAIN SHAFT ZB
2 476 Kč
2 78033005100
IDLER GEAR 5. GEAR
2 160 Kč
3 78033003000
SLIDING GEAR 3/4 G. 08
2 580 Kč
4 78033006100
IDLER GEAR 6. GEAR
2 160 Kč
5 78033002000
SOLID GEAR 2.G. 08
895 Kč
6 56033030000
STOP DISC 17,2X30X1
158 Kč
7 0405222613
NEEDLE BEAR. K 22X26X13 TN
132 Kč
8 78033033000
STOP DISK 23 X 32 X 1,5
73 Kč
9 0471250120
CIRCLIP DIN0471-25X1,2
18 Kč
10 78033031000
STOP DISK 26 X 32 X 1,5
73 Kč
11 78033001110
BUSHING
211 Kč
20 0625062054
BALL BEARING 6205 C3 NTN
292 Kč
21 78033032000
TAB WASHER BEARING MAIN SHAFT
81 Kč
22 0019050106S
HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9
18 Kč
23 0625062036
BALL BEARING 6203 RSH C3
207 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

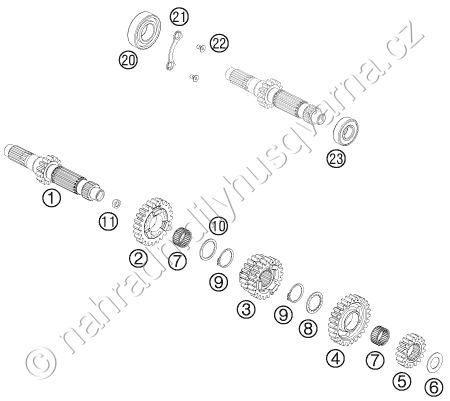

TRANSMISSION I - MAIN SHAFT

Zvětšit schéma TRANSMISSION I - MAIN SHAFT
TRANSMISSION I - MAIN SHAFT
