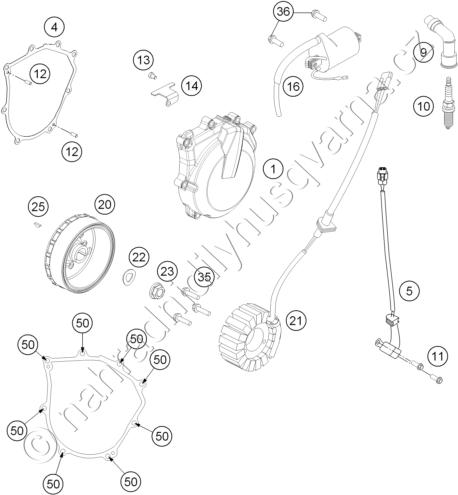

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78130002300KA IGNITION COVER |
1 867 Kč | |
| 4 | 78130040000 GASKET - IGNITION COVER |
215 Kč | |
| 5 | 59039034000 PULSE GENERATOR KOKUSAN 4K3-A/B |
1 763 Kč | |
| 9 | 77139090000 SPARK PLUG CONNECTOR |
892 Kč | |
| 10 | 75039093000 SPARK PLUG M12X1,25 LKAR8AI-9 |
610 Kč | |
| 11 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 12 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 13 | 0019040106S FLAT HEAD SCREW ISA25 M4X10 |
18 Kč | |
| 14 | 81230002010 RETAINING PLATE |
114 Kč | |
| 16 | 58439006000 IGNITIONCOIL IG3826 KOKUSAN\'96 |
1 278 Kč | |
| 20 | 78039205000 ROTOR EXC 08 |
6 543 Kč | |
| 21 | 83039004000 STATOR |
3 128 Kč | |
| 22 | 0137120000 SPRING WASHER DIN0137-B12 |
17 Kč | |
| 23 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 25 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 35 | 0025050306 HH COLLAR SCREW M5X30 TX30 |
20 Kč | |
| 36 | 0026060186 COLLAR SCREW M6X18 ISA30 |
18 Kč | |
| 50 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč |
