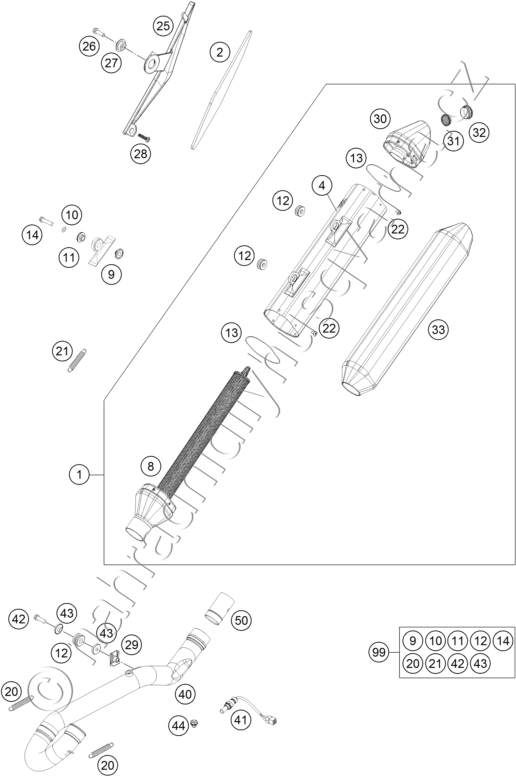

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81305681000 SILENCER 350-501 FE EU |
7 672 Kč | |
| 2 | 81305011050 THERMAL PROTECTION FOIL |
340 Kč | |
| 4 | 81305681080 SILENCER HOUSING FE |
3 201 Kč | |
| 8 | 77705081050 CONNECTING CAP CPL. |
4 858 Kč | |
| 9 | 81305069000 BUSHING 7,5X12X20 |
134 Kč | |
| 10 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 11 | 77205169000 BUSHING 7.5x12x28x8.3 11 |
82 Kč | |
| 12 | 77205068000 DAMP. COMPON. BLACK |
69 Kč | |
| 13 | 0770740015 O-RING 74,00X1,50 FKM 75SH |
58 Kč | |
| 14 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 20 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 21 | 50305116000 TEN.SPRING L=75MM EY.MOVEABLE |
82 Kč | |
| 22 | 78105081010 SCREW TORX M5X10 |
15 Kč | |
| 25 | 8130501100030 HEAT SHIELD BLACK |
180 Kč | |
| 26 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 27 | 77308013010 COLLAR BUSH. F.REAR FENDER 07 |
106 Kč | |
| 28 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 29 | 54603048000 RANGE CHANGE METAL NUT M8 |
52 Kč | |
| 30 | 78705081060 END CAP CPL. |
3 821 Kč | |
| 31 | 77005081065 THROTTLE ELEMENT CPL. EXC 07 |
340 Kč | |
| 32 | 77005081055 SIL. ELEMENT EXC-F 07 |
151 Kč | |
| 33 | 78905078700 ROCKWOOL PREFORMED |
1 703 Kč | |
| 40 | 78705009000 EXHAUST PIPE EXC W. LAMBDA |
9 553 Kč | |
| 41 | 75041090100 LAMBDA SENSOR |
3 560 Kč | |
| 42 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 43 | 59405069000 BUSHING FOR EXHAUST SUPPORT 03 |
140 Kč | |
| 44 | 77405009065 PLUG SCREW M12X1,25 WS17 |
163 Kč | |
| 50 | 78105091000 PLUG IN CAT 2012 |
3 786 Kč | |
| 99 | 00050000818 EXHAUST PARTS KIT FC 13-15 |
895 Kč |
