Díly pro FRAME

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 8130360120028
FRAME 450/501 FE EU 2014
39 760 Kč
2 8130300211030
SUB FRAME UPPER PART CPL. 14
3 965 Kč
3 8130300222030
SUB FRAME L/S CPL.
2 183 Kč
4 8130300213030
SUB FRAME R/S CPL. 2014
2 183 Kč
5 78703113000
REINFORCING BRACKET 500 2014
119 Kč
6 60011093075
RUBBER CABLE TIE 75MM 03
60 Kč
7 77207012000
TANK REST RUBBER
153 Kč
8 59001037000
SPECIAL SCREW M8X26 WS=10
53 Kč
9 58111076000
CABLE SUPPORT KHS NR.150-47610
65 Kč
10 78103035000
STEERING HEAD LOCK
773 Kč
11 0934080003
HEXAGON NUT DIN0934-M 8
18 Kč
12 77036079000
CYLINDER HEAD SCREW 05
249 Kč
14 0035080206S
SHCS M8X20 TX45
52 Kč
15 56530079000S
HH COLLAR SCREW M8X44 WS13
58 Kč
16 47106003160
QUICK RELEASE RUBBER GROMMET
57 Kč
17 81303002011
SPACER BUSHING 12X9X6,2
45 Kč
18 0019080306S
COUNTER-SUNK SCREW ISA45 M8X30
33 Kč
19 0035080306S
AH-COLLAR SCREW M8X30 ISA45
23 Kč
25 06923080003
HEX NUT EN 1661 M8 WS13
23 Kč
26 54310086100
SELF LOCKING NUT M10 CU WS=14
20 Kč
27 0025080306
HH COLLAR SCREW M8X30 TX40
32 Kč
29 0025060306
HH COLLAR SCREW M6X30 TX30
29 Kč
36 78003040050
FOOTREST L/S 08
858 Kč
40 78003041050
FOOTREST R/S 08
858 Kč
41 54803044000
BOLT FOR FOOT PED 03
203 Kč
42 54603041000
FOOTREST SPRING L/S & R/S
71 Kč
43 0125100003
WASHER DIN 125 A 10.5
13 Kč
44 0094032250
PIN DIN 0094-3.2X25 NIRO
5 Kč
45 78003040033
FOOTREST L/S + R/S CPL. 09
1 440 Kč
46 50303089000
ANGEL PIECE \'97
50 Kč
47 55007016001
PVC-HOSE 7X10 PER METER
87 Kč
50 78103096000
CHAIN GUARD 450/500 EXC 12
246 Kč
59 77203053000
CHAIN SLIDER LOWER PART CPL.
158 Kč
64 77203053010
CHAIN SLIDING KIT BELOW CPL.11
171 Kč
99 78103096010
SPROCKET COVER KIT
326 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL ENGINE GUARD ENGINE GUARD EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL FUEL PUMP FUEL PUMP HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS INSTRUMENTS / LOCK SYSTEM INSTRUMENTS / LOCK SYSTEM LIGHTING SYSTEM LIGHTING SYSTEM MASK, FENDERS MASK, FENDERS PRO LEVER LINKING PRO LEVER LINKING REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SIDE / CENTER STAND SIDE / CENTER STAND SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS WP SHIMS FOR SETTING WP SHIMS FOR SETTING

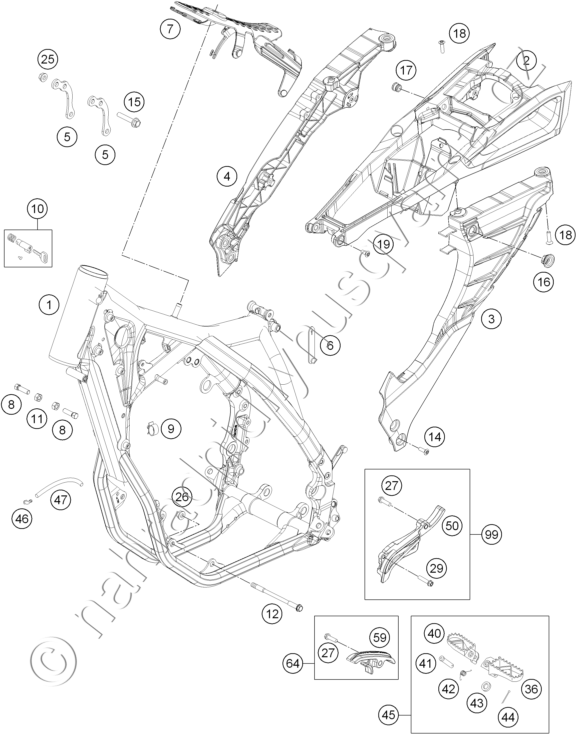

FRAME

Zvětšit schéma FRAME
FRAME
