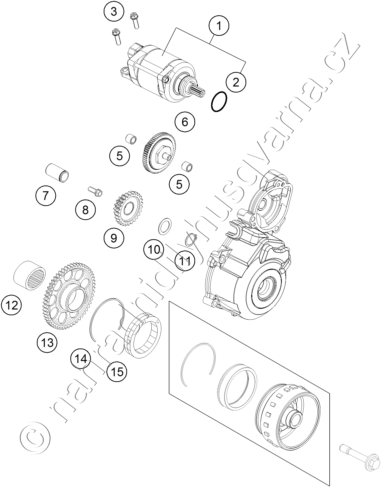

Díly pro ELECTRIC STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77240001100 E-STARTER ENGINE CPL. |
5 758 Kč | |
| 2 | 0770250030 O-RING 25,00X3,00 NBR 70 |
17 Kč | |
| 3 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 5 | 0618081210 NEEDLE BUSH HK 0810 DIN 618 |
71 Kč | |
| 6 | 77240016000 TORQUE LIMITER |
3 347 Kč | |
| 7 | 59040028000 BUSHING PIN |
191 Kč | |
| 8 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 9 | 77240022000 INTERMEDIATE STARTING GEAR |
1 681 Kč | |
| 10 | 54633090000 STOP DISK 17,2X25X1 |
49 Kč | |
| 11 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 12 | 0618253216 NEEDLE BUSH HK2516 25/32/16 02 |
164 Kč | |
| 13 | 77840020000 FREEWHEEL GEAR |
2 702 Kč | |
| 14 | 0472057150 CIRCLIP DIN0472-57X1,50 |
36 Kč | |
| 15 | 79240026000 FREEWHEEL |
1 934 Kč |
