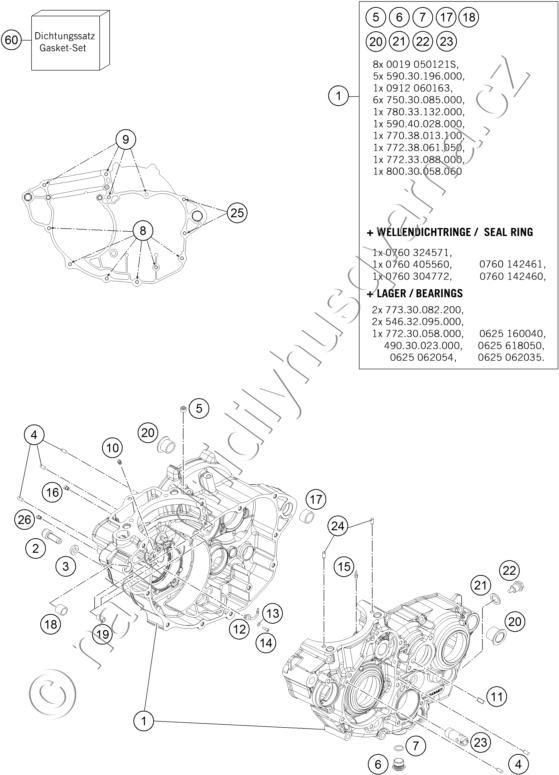

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77730100033 ENGINE CASE CPL. |
30 042 Kč | |
| 2 | 77730080000 LOCATING SCREW M8 L=25 |
60 Kč | |
| 3 | 58030081000 CU-SEAL RING 8 X 14 X 3 |
42 Kč | |
| 4 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 5 | 0906100100 PIPE PLUG DIN 906 M10X1 |
71 Kč | |
| 6 | 78036081000 HOLDING BOLT M14X1,5 |
87 Kč | |
| 7 | 0770110015 O-RING 1,5x11 SILICON |
57 Kč | |
| 8 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 9 | 0025060656 HH COLLAR SCREW M6X65 TX30 |
29 Kč | |
| 10 | 80030058060 OIL JET \'\'60\'\' M4 |
236 Kč | |
| 11 | 77230066000 THROTTLE M5X10X0,5 |
188 Kč | |
| 12 | 81230164050 OIL JET ANGLED 50 |
212 Kč | |
| 13 | 0770035020 O-RING 3,5X2,00 NBR |
4 Kč | |
| 14 | 0912040103 AH.SCREW DIN0912-M 4X10 |
20 Kč | |
| 15 | 60030063050 OIL JET 50 M5 |
159 Kč | |
| 16 | 59030058000 JET 100 BING(44-031/180) M4 |
60 Kč | |
| 17 | 59030024000 DOWEL 17 X 19 X 12 |
94 Kč | |
| 18 | 54630027000 DOWEL BUSHING 13,8X11X12 |
143 Kč | |
| 19 | 59030023000 DOWEL SLEEVE 6X8X11.5 |
82 Kč | |
| 20 | 75030010100 CASE BUSH |
195 Kč | |
| 21 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 22 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 23 | 77038022000 OIL INTAKEPIPE |
116 Kč | |
| 24 | 0402050080 CYLINDER ROLLER ZRO 5X8 |
34 Kč | |
| 25 | 0025060856 HH COLLAR SCREW M6X85 TX30 |
29 Kč | |
| 26 | 77030058150 JET 44-031/150 |
60 Kč | |
| 60 | 77730099000 GASKET SET 250 SX-F |
6 058 Kč |
