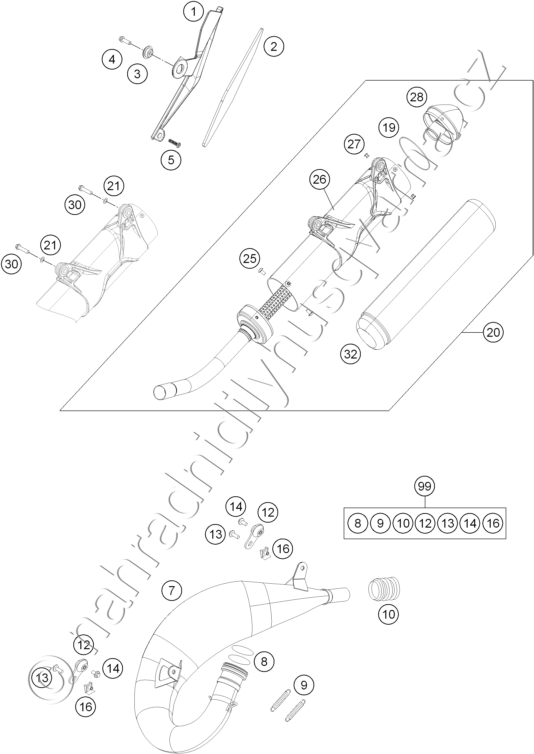

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 8130501100030 HEAT SHIELD BLACK |
180 Kč | |
| 2 | 81305011050 THERMAL PROTECTION FOIL |
340 Kč | |
| 3 | 77308013010 COLLAR BUSH. F.REAR FENDER 07 |
106 Kč | |
| 4 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 5 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 7 | 50305007300 EXHAUST PIPE CPL. SX 2006 |
4 070 Kč | |
| 8 | 0770440030 O-RING 44,00X3,00 VITON |
58 Kč | |
| 9 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 10 | 54605057000 RUBBER SLEEVE D=21MM/23MM \'93 |
467 Kč | |
| 12 | 50305012000 SWINGELEMENT FOR EXHAUST PIPE |
257 Kč | |
| 13 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 14 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 16 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 19 | 0770740015 O-RING 74,00X1,50 FKM 75SH |
58 Kč | |
| 20 | 50305079500 SILENCER 125-150 SX |
5 128 Kč | |
| 21 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 25 | 58605083010 SCREW TORX M5X10 05 |
34 Kč | |
| 26 | 50305179085 SILENCER CASING CPL.W.MOUNTING |
1 961 Kč | |
| 27 | 0011480800 DUMMY RIVET 4,8X 8 NIRO |
39 Kč | |
| 28 | 50305083260 END CAP CPL. |
2 128 Kč | |
| 30 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 32 | 50305078235 ROCK WOOL 235G |
882 Kč | |
| 99 | 00050000811 EXHAUST HARDWARE KIT 11-14 |
1 280 Kč |
