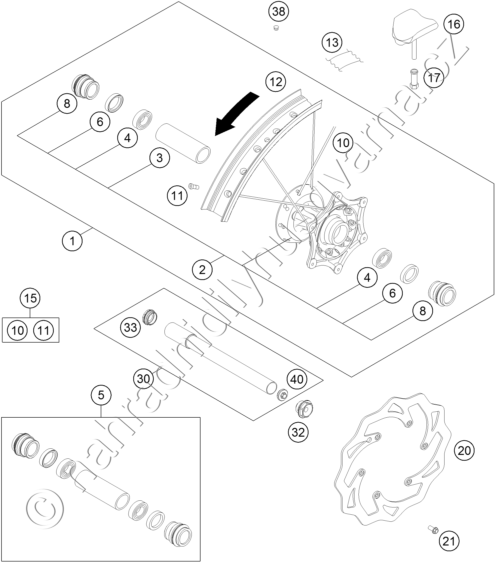

Díly pro FRONT WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2500900124430 FRONTWHEEL CPL. 1,6X21\'\'DID 22M |
16 071 Kč | |
| 2 | 25009010244 FRONTHUB CPL. |
5 362 Kč | |
| 3 | 54809011000 BEA.SPACERTUBE 35X2 L=79,4 03 |
446 Kč | |
| 4 | 0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM |
445 Kč | |
| 5 | 77709015000 FRONT WHEEL REP. KIT SX-F USA |
1 371 Kč | |
| 6 | 0760354771 SHAFT SEAL RING 35X47X7 TC |
65 Kč | |
| 8 | 77709012000 SPACER BUSHING F. FR. WHEEL |
490 Kč | |
| 10 | 77109071226 SPOKE M4,5x226-21\'\' 11 |
69 Kč | |
| 11 | 77109072000 SPOKE NIPPLE M4,5 AL 11 |
52 Kč | |
| 12 | 8120907010030 RIM FRONT 1,60X21\'\' DID |
5 367 Kč | |
| 13 | 50309073000 RIM BAND 21\'\' |
198 Kč | |
| 15 | 00050000916 SPOKE KIT FRONT \'\'21\'\' |
3 558 Kč | |
| 16 | 78109090000 RIM LOCK 1,60\'\' |
375 Kč | |
| 17 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
| 20 | 77309060000 BRAKE DISC FRONT 260 |
2 909 Kč | |
| 21 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 30 | 77709081033 WHEEL SPIN.FR. CPL. D=22 15 |
1 413 Kč | |
| 32 | 70009082000 AXLESCREW M20X1.5; SW17 |
201 Kč | |
| 33 | 70009081050 PLUG BUSHING SW17 \'12 |
164 Kč | |
| 38 | 55003135000 PLUG FOR RIM |
29 Kč | |
| 40 | 7770908107055 AUXILIARY SCREW FRONT |
25 Kč |
