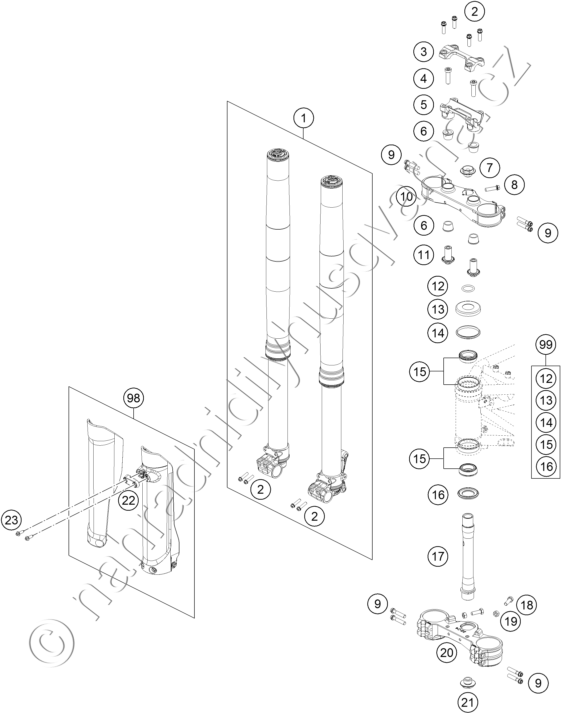

Díly pro FRONT FORK, TRIPLE CLAMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 24157P1001 FRONT FORK FE 701 2016 |
47 338 Kč | |
| 2 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 3 | 79001038000 HANDLEBAR CLAMP 28MM |
1 120 Kč | |
| 4 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
| 5 | 79001139036 HANDLEBAR SUPPORT D28MM-H36MM |
1 710 Kč | |
| 6 | 83001040000 RUBBER BUSH |
65 Kč | |
| 7 | 54801036000 STEER.HEAD SCREW M20X1,5 WS=27 |
185 Kč | |
| 8 | 0015080256S HH COLLAR SCREW M8X25 WS=10 |
52 Kč | |
| 9 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč | |
| 10 | 2700103422330 UP. TRIPLE-CLAMP 22-24 OFFSET |
6 412 Kč | |
| 11 | 79001037034 HANDLEBAR SUPPORT LOWER PART |
958 Kč | |
| 12 | 0770025035 O-RING 25X3,55 NBR70 05 |
17 Kč | |
| 13 | 78101086000 STEERING HEAD COVER |
94 Kč | |
| 14 | 54601184000 STEARING HEAD GASKET TOP |
114 Kč | |
| 15 | 54201081100 TAPERED ROLLER BEARING CPL. 06 |
756 Kč | |
| 16 | 77701084000 O-RING SUPPORT W. SEALING LIP |
332 Kč | |
| 17 | 76501033000 FORK TUBE L=237MM 08 |
2 082 Kč | |
| 18 | 0933080253 HH SCREW DIN0933-M 8X25 |
31 Kč | |
| 19 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
| 20 | 2700103112330 BOTTOM TRIPLE CLAMP 22-24 |
8 164 Kč | |
| 21 | 54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL |
249 Kč | |
| 22 | 2500108500028 CLAMP BRAKE HOSE |
61 Kč | |
| 23 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 98 | 2500109400028C FORK PROTECTION SET 701 END.16 |
1 362 Kč | |
| 99 | 00050000930 STEARING HEAD REP. KIT 06-15 |
1 900 Kč |
