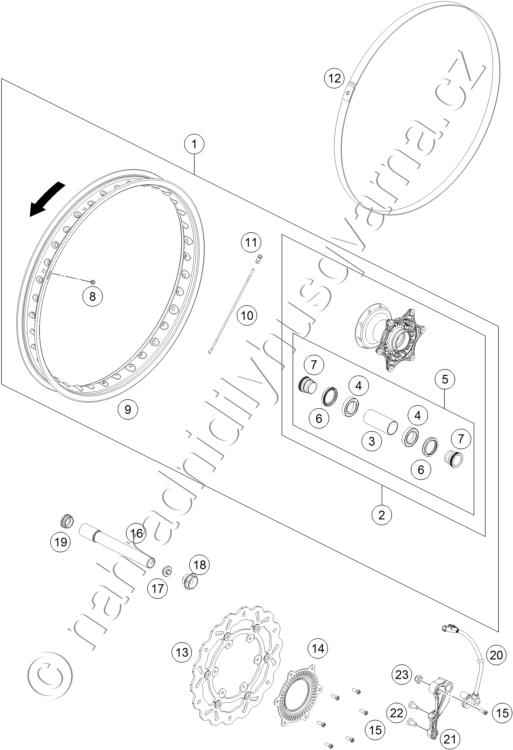

Díly pro FRONT WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7650910104430 FRONT WHEEL CPL. 1,85X21\'\' 16 |
18 427 Kč | |
| 2 | 7530901004491 FRONT HUB CPL. |
6 664 Kč | |
| 3 | 54809011000 BEA.SPACERTUBE 35X2 L=79,4 03 |
446 Kč | |
| 4 | 0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM |
445 Kč | |
| 5 | 78009015000 FRONT WHEEL REP. KIT |
1 371 Kč | |
| 6 | 0760354771 SHAFT SEAL RING 35X47X7 TC |
65 Kč | |
| 7 | 78009012000 SPACER BUSHING F. FR. WHEEL 08 |
490 Kč | |
| 8 | 55003135000 PLUG FOR RIM |
29 Kč | |
| 9 | 7650917000030 RIM 1,85X21\'\' DID BLACK 16 |
6 822 Kč | |
| 10 | 75309073226 SPOKE M4,5X226-18\'\' INOX |
63 Kč | |
| 11 | 81210072100 SPOKE NIPPLE QUADRAX M4,5 |
45 Kč | |
| 12 | 58409073100 RIM BAND FRONT 2MM 2003 |
198 Kč | |
| 13 | 76509260000 FRONT BRAKE DISC D=300MM |
5 769 Kč | |
| 14 | 60142020000 SENSOR WHEEL FRONT 06 |
599 Kč | |
| 15 | 014580060166S SHCS ISO 14580 M6X16 SL |
20 Kč | |
| 16 | 77309081000 WHEEL SPIN.FR. D=26 M24x1,5 07 |
1 413 Kč | |
| 17 | 54809081070 AUXILIARY SCREW FRONT 06 |
118 Kč | |
| 18 | 54809082000 SPINDLE SCREW M24X1,5 WS=27 03 |
215 Kč | |
| 19 | 54809081050 PLUG BUSHING WS=27 03 |
113 Kč | |
| 20 | 27042025000 ABS SENSOR |
3 268 Kč | |
| 21 | 27042024100 SENSOR BRACKET |
260 Kč | |
| 22 | 0018050103 INT. TORX OVAL HEAD M 5X10 8.8 |
23 Kč | |
| 23 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč |
